Curved storage seat

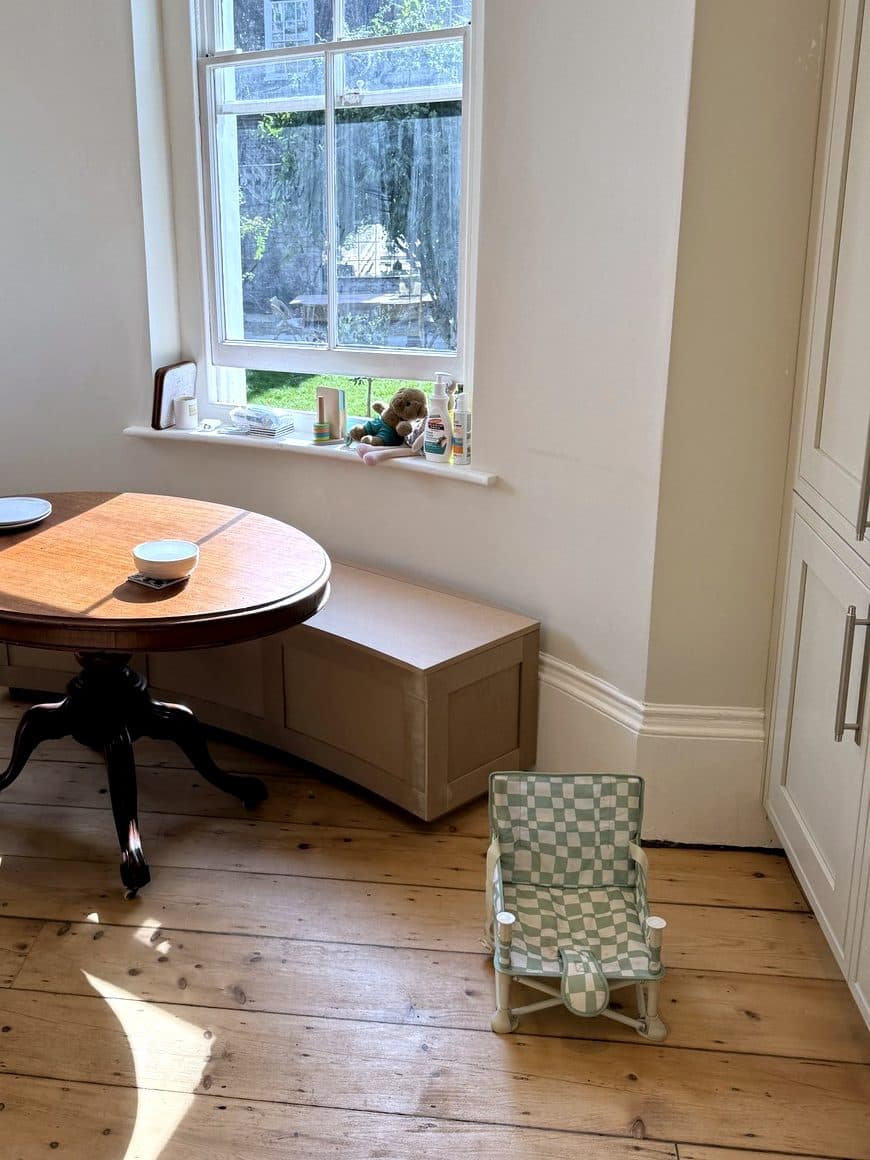

A curved bench for a kitchen bay, next to a round table. I sketched it by hand, drew it up in SketchUp, then built it in MDF: curved frames, storage boxes underneath and lift-up lids on top, with panelled fronts.
- Area
- Kennington
- Finished
- August 2026
- Room
- Kitchen
- Built from
- MDF
- Storage
- Lift-up lids

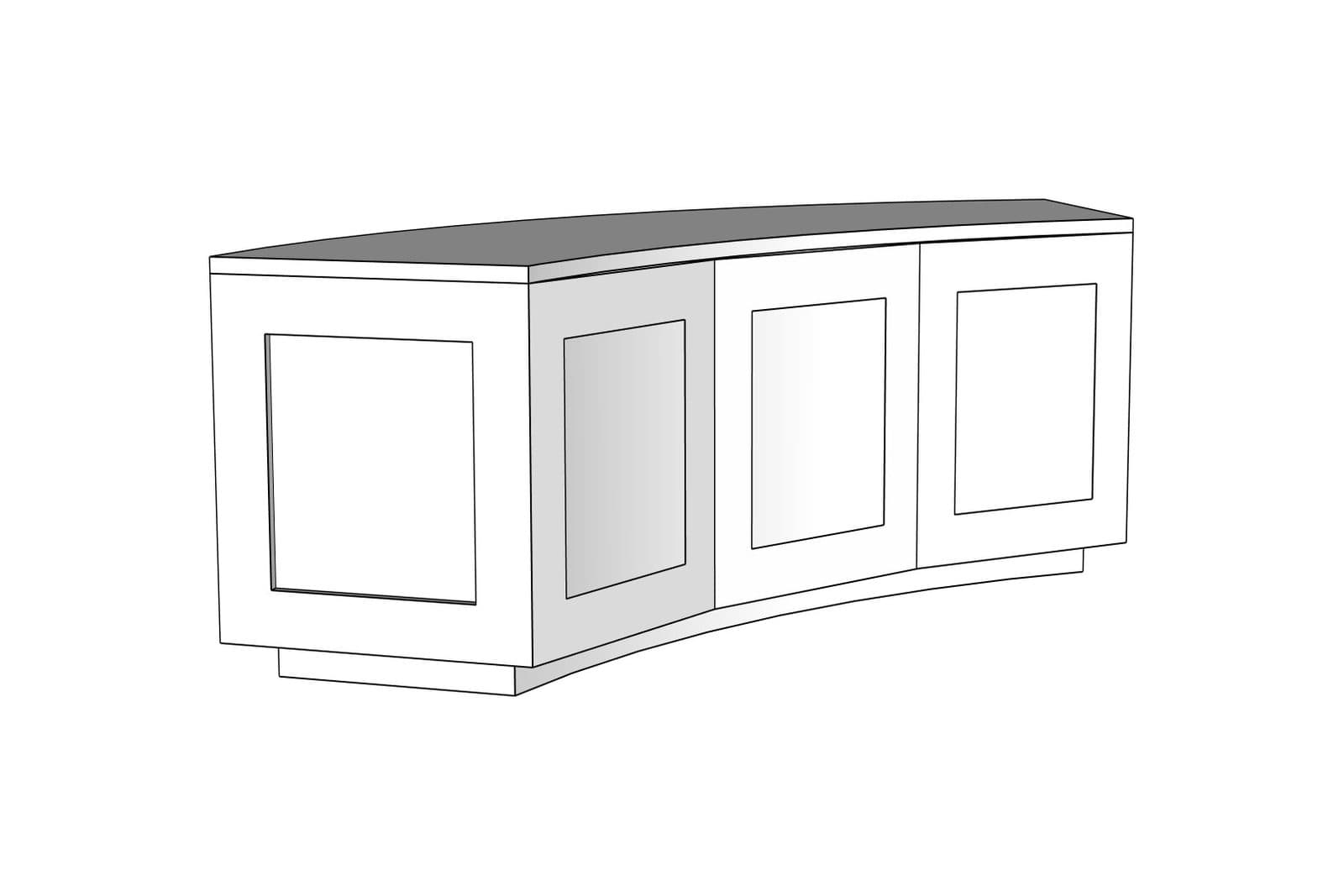

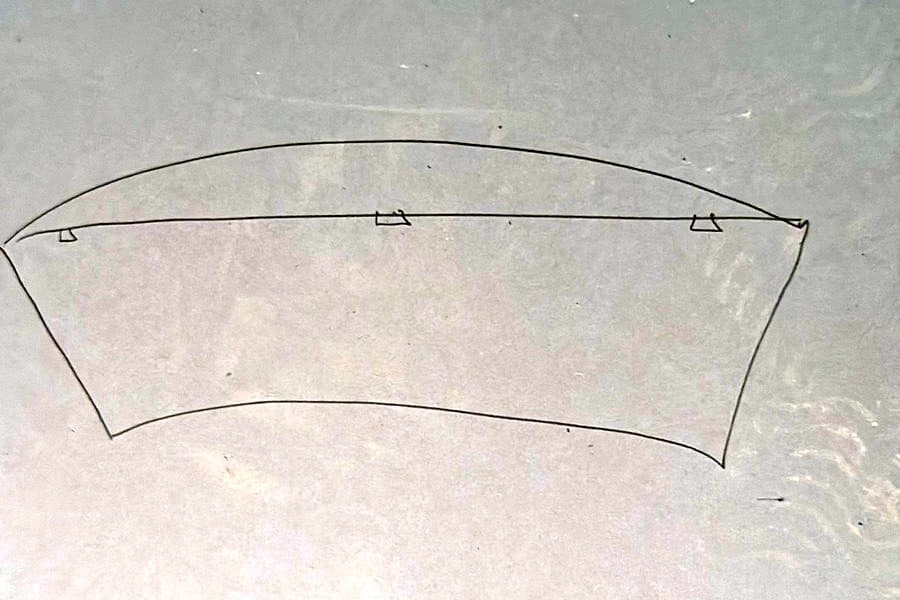

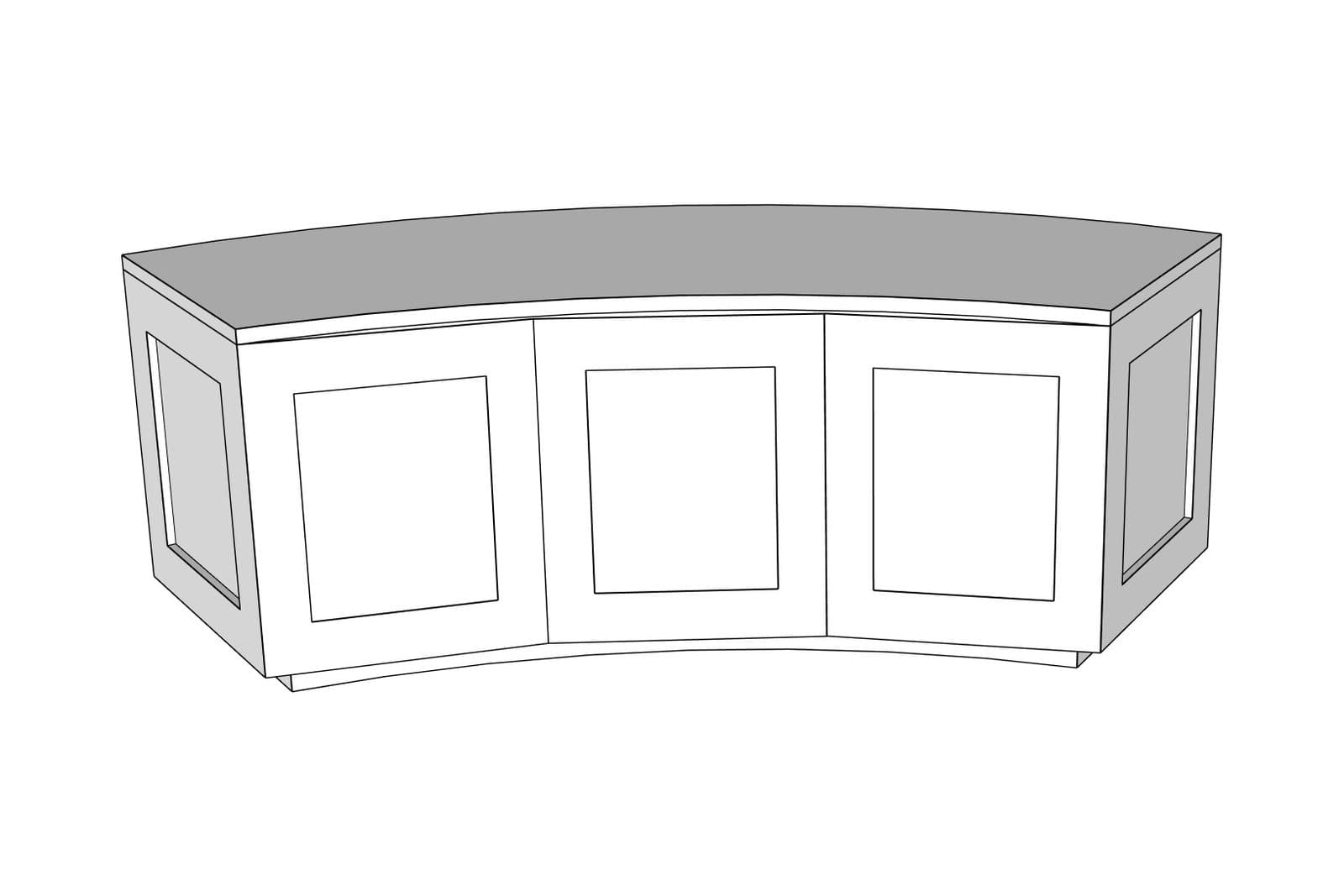

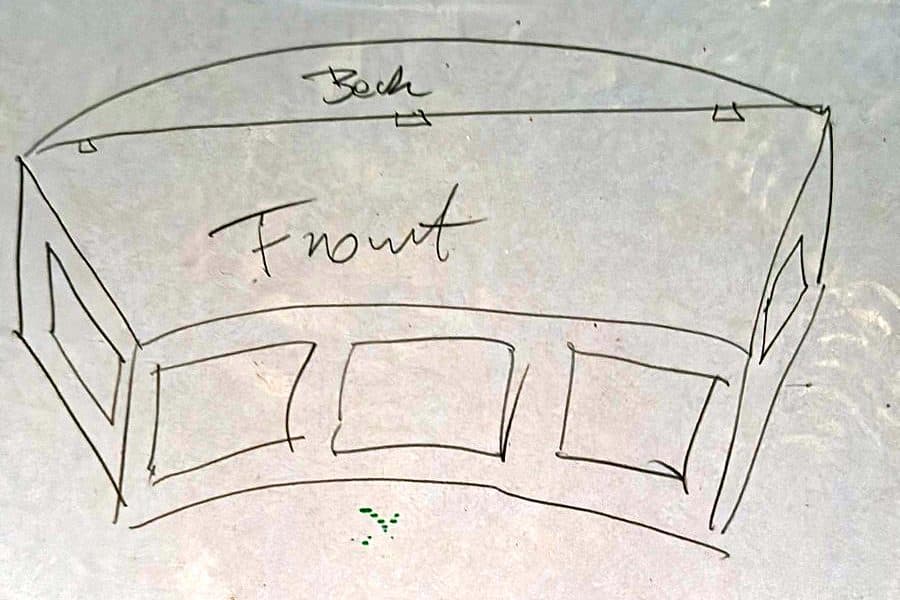

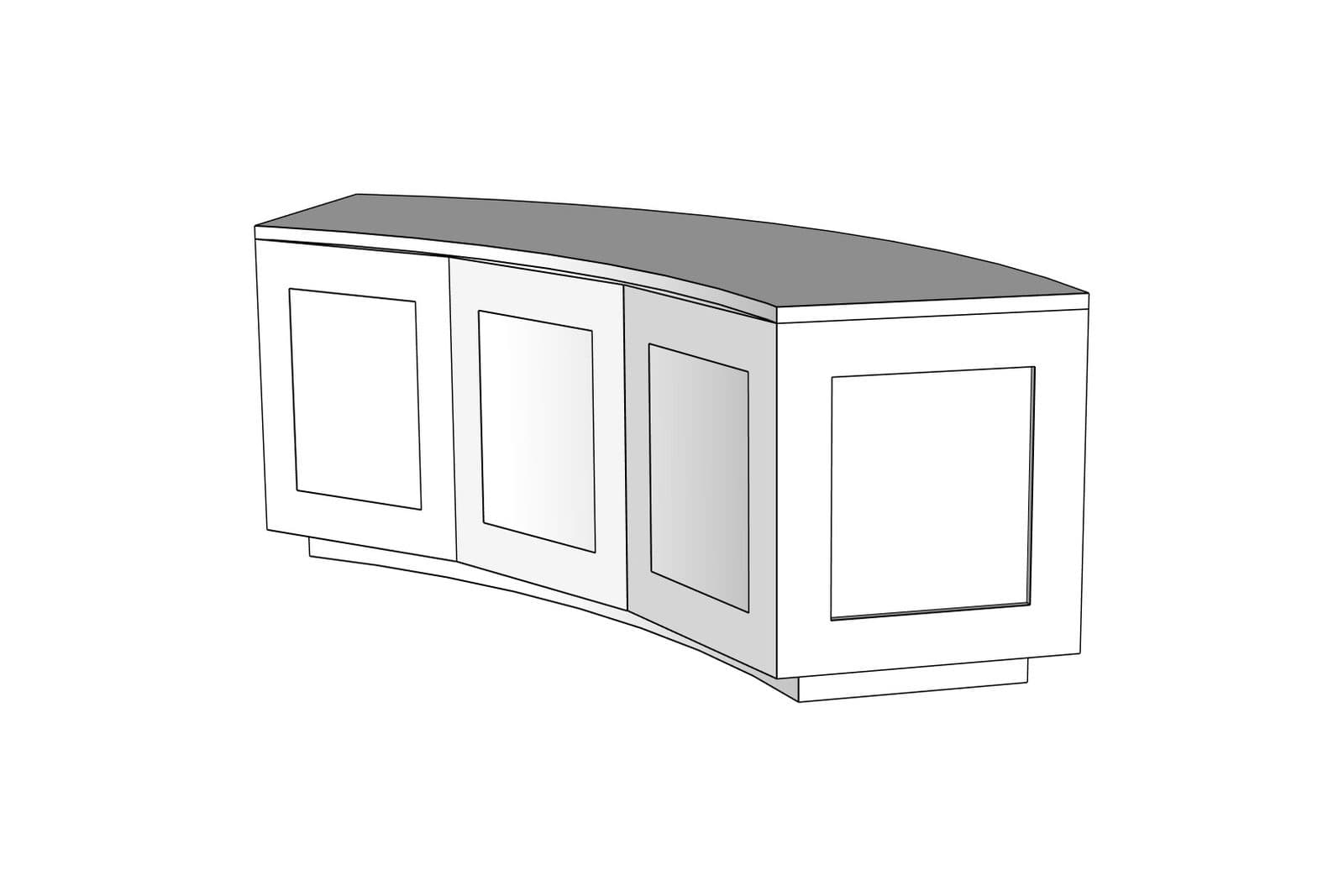

Drawn by hand, then in SketchUp
I sketched the curve by hand first, then drew the whole seat in SketchUp to settle the curve and the panel layout before cutting anything.
More drawings
Tap a drawing to see it full size
Lids up
The lids lifting to show the storage underneath.
How it went together
01

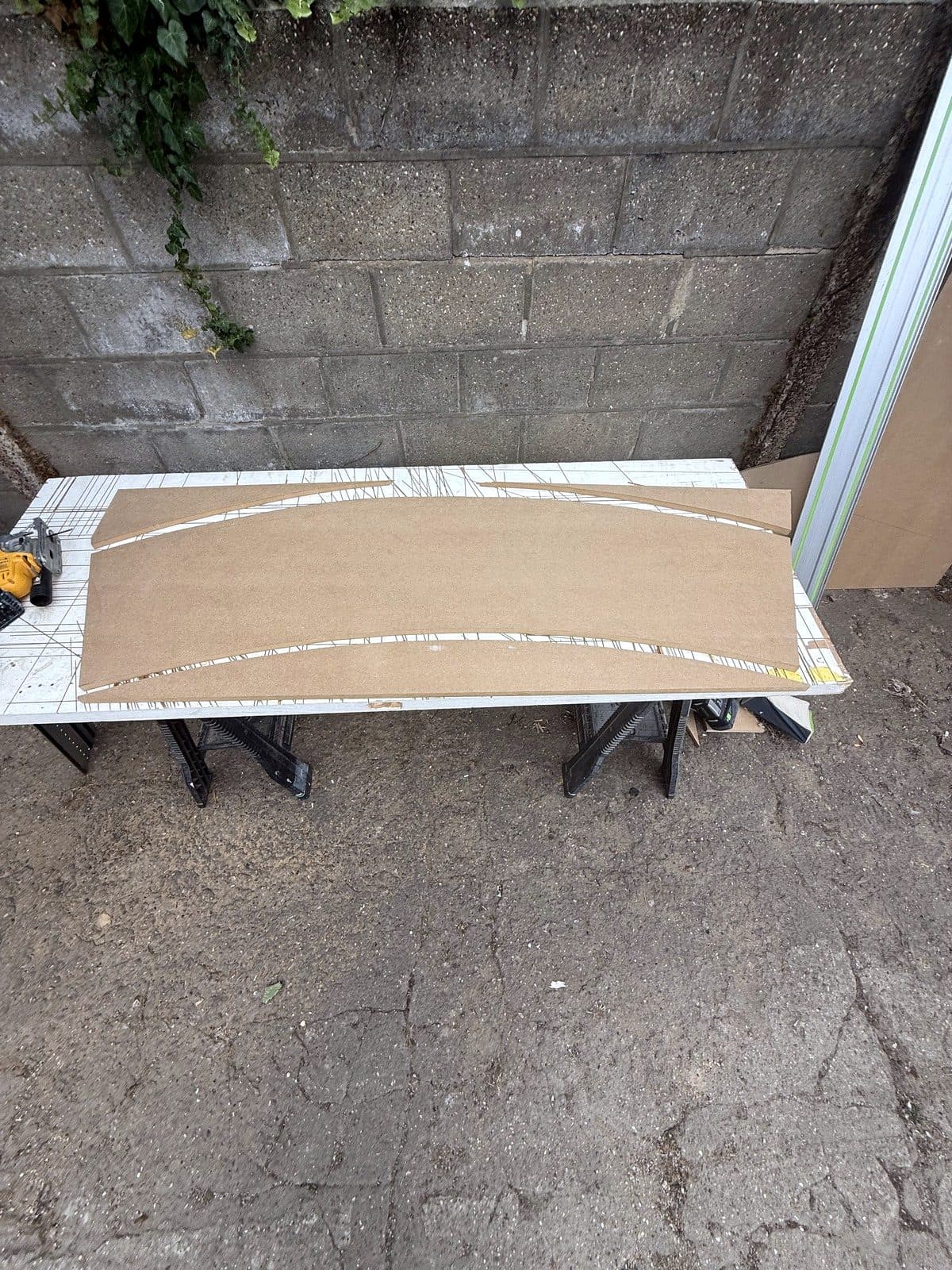

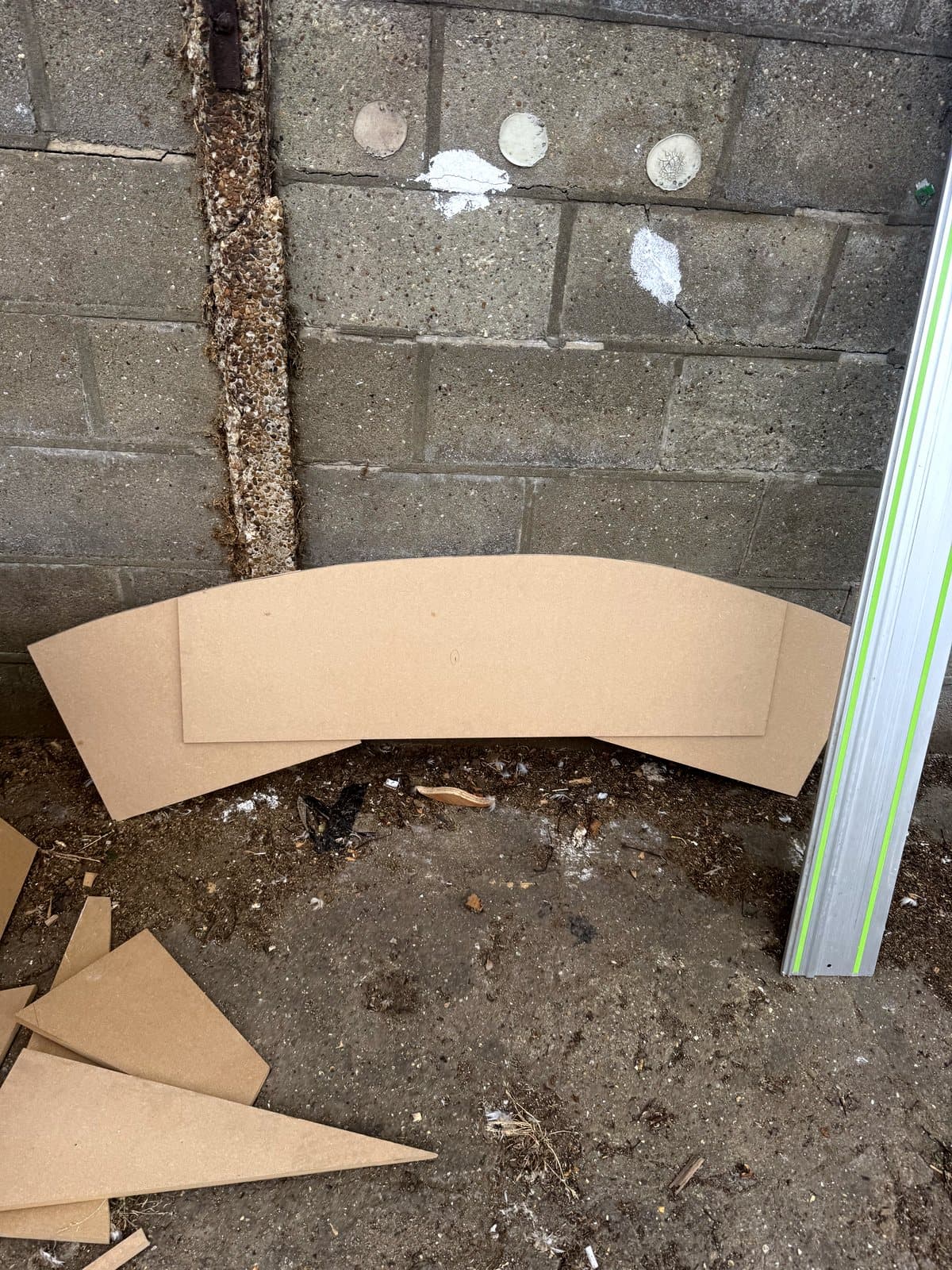

Curve marked out
The curve drawn out full size on the board.
02

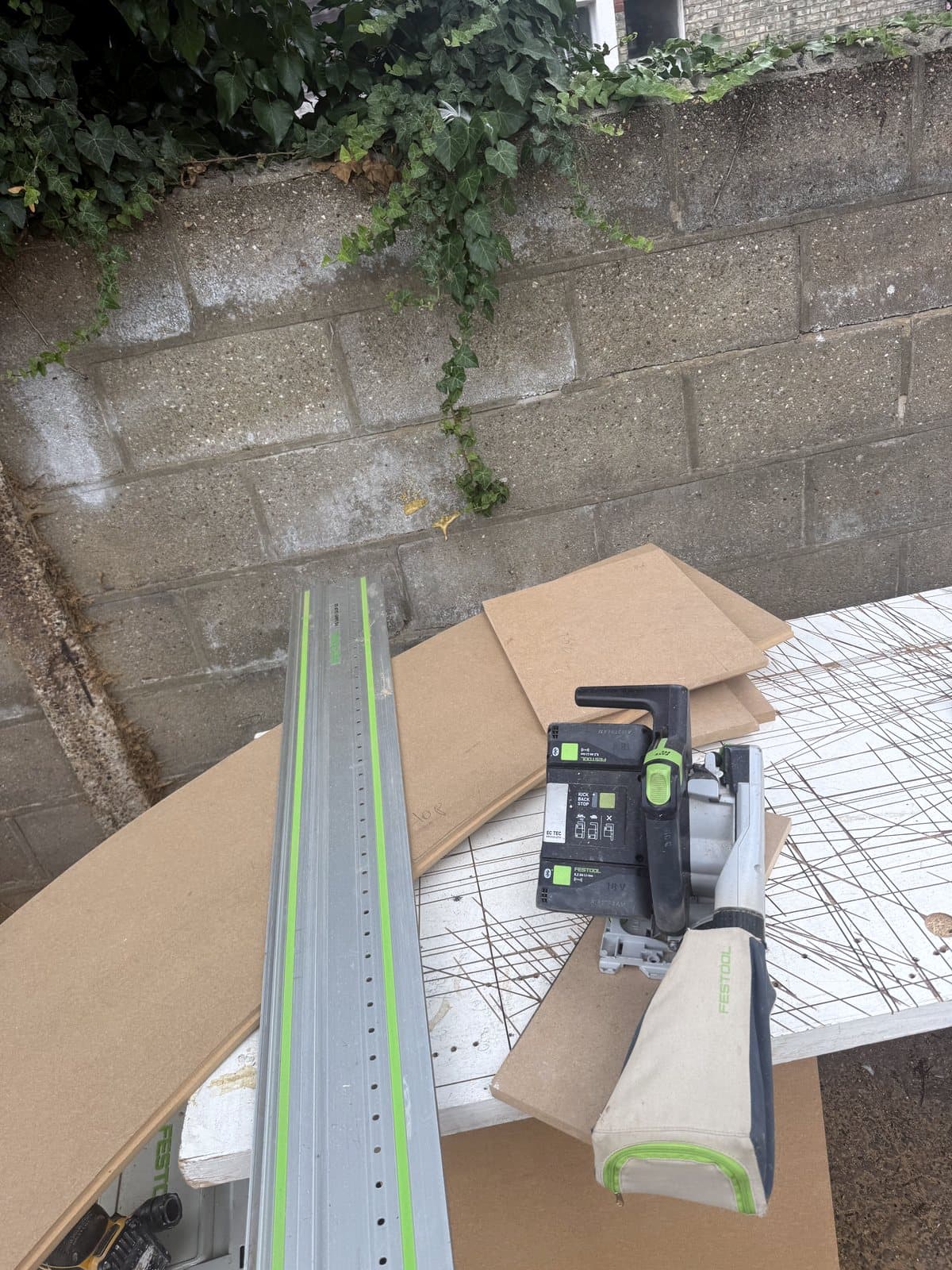

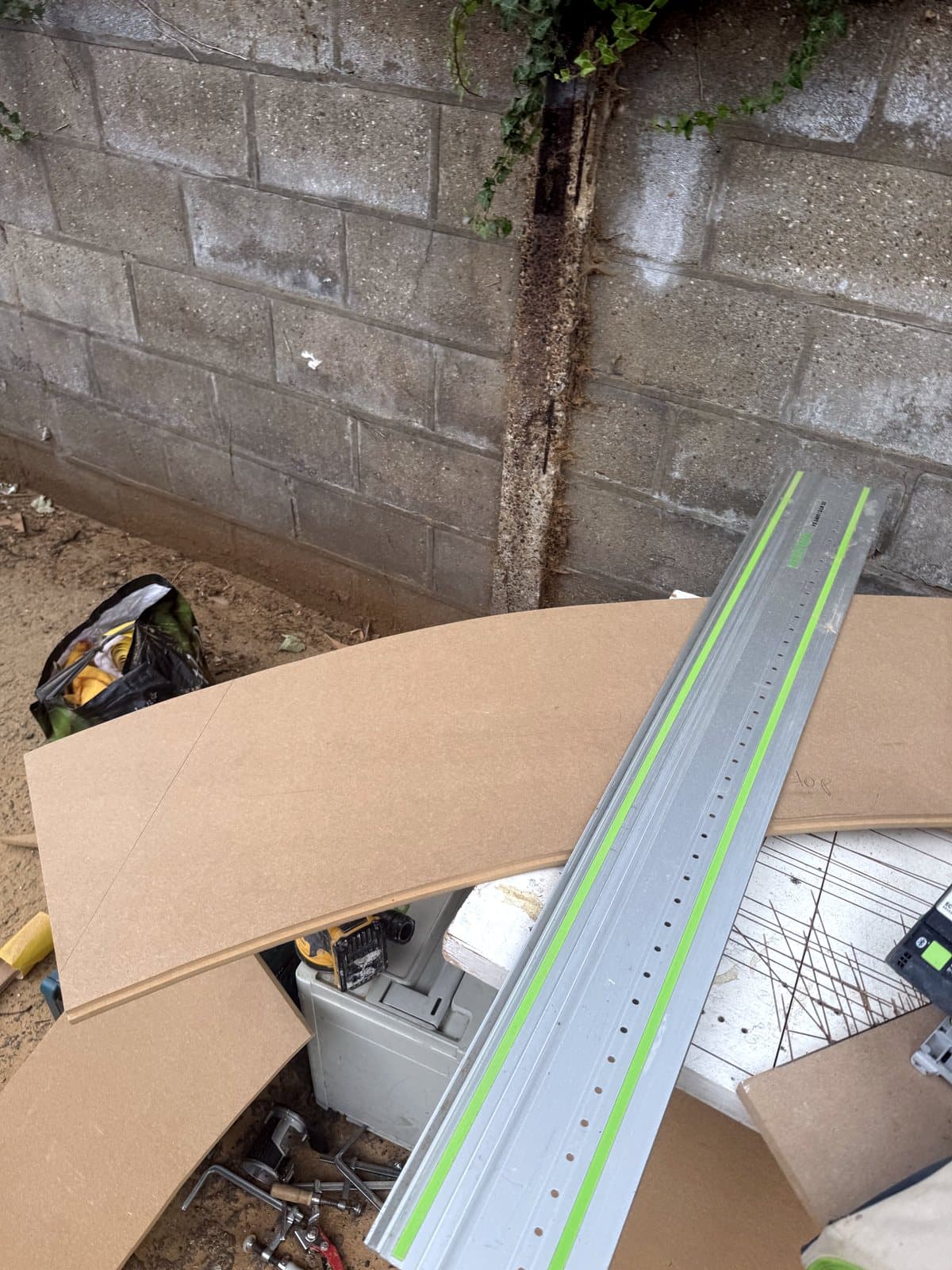

Straight cuts on the rail
The straight edges cut with a track saw on its rail.
03

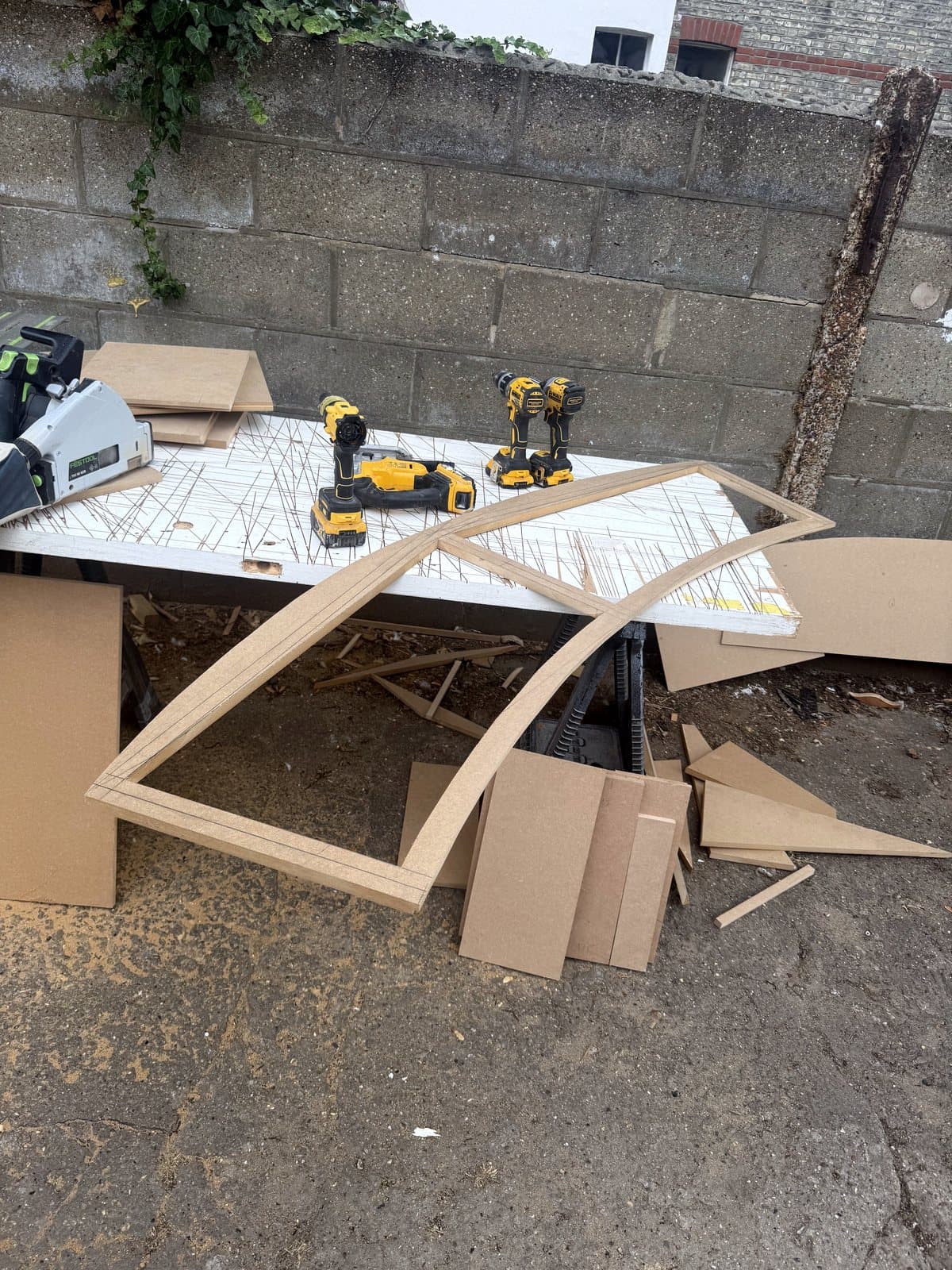

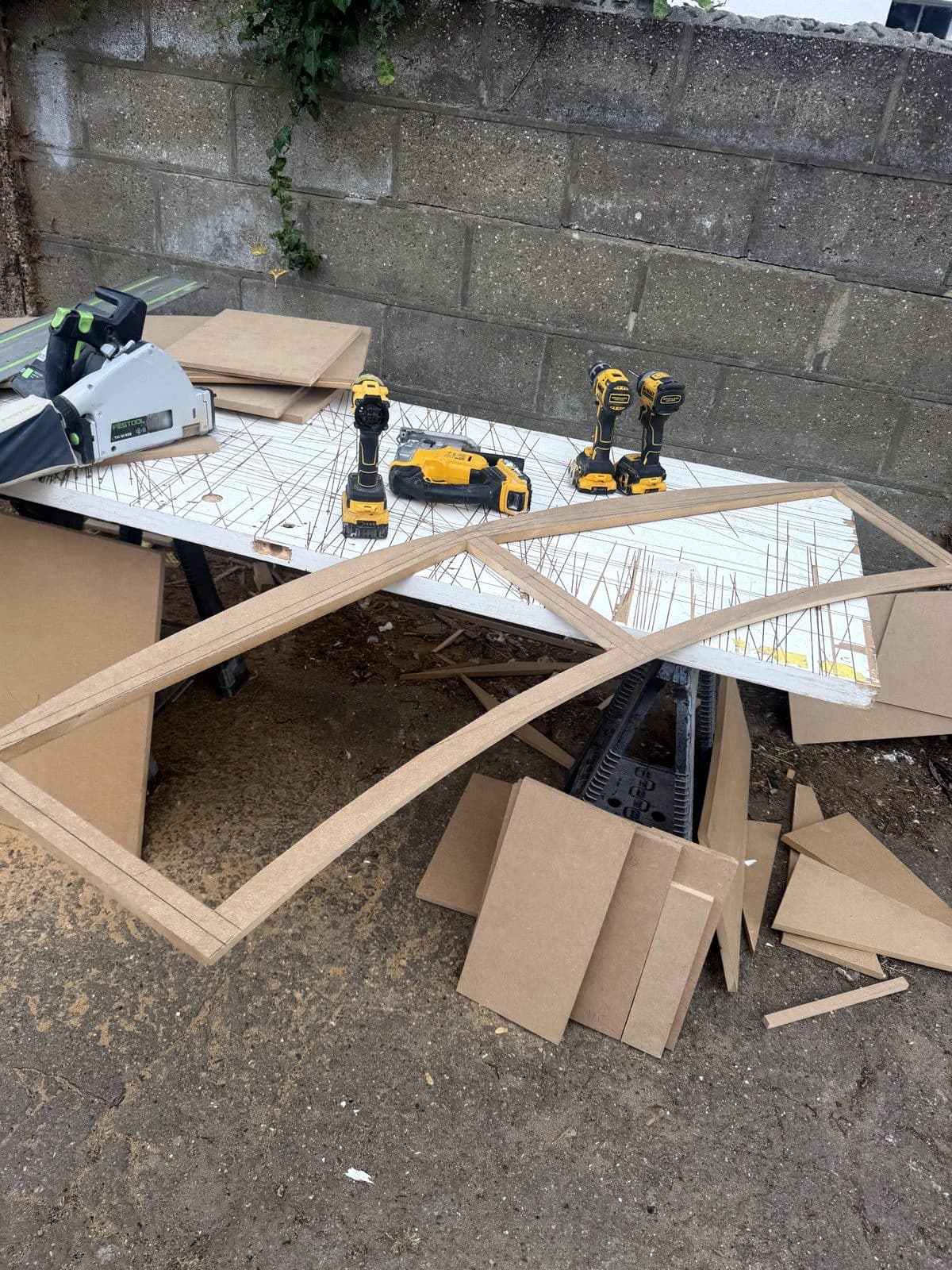

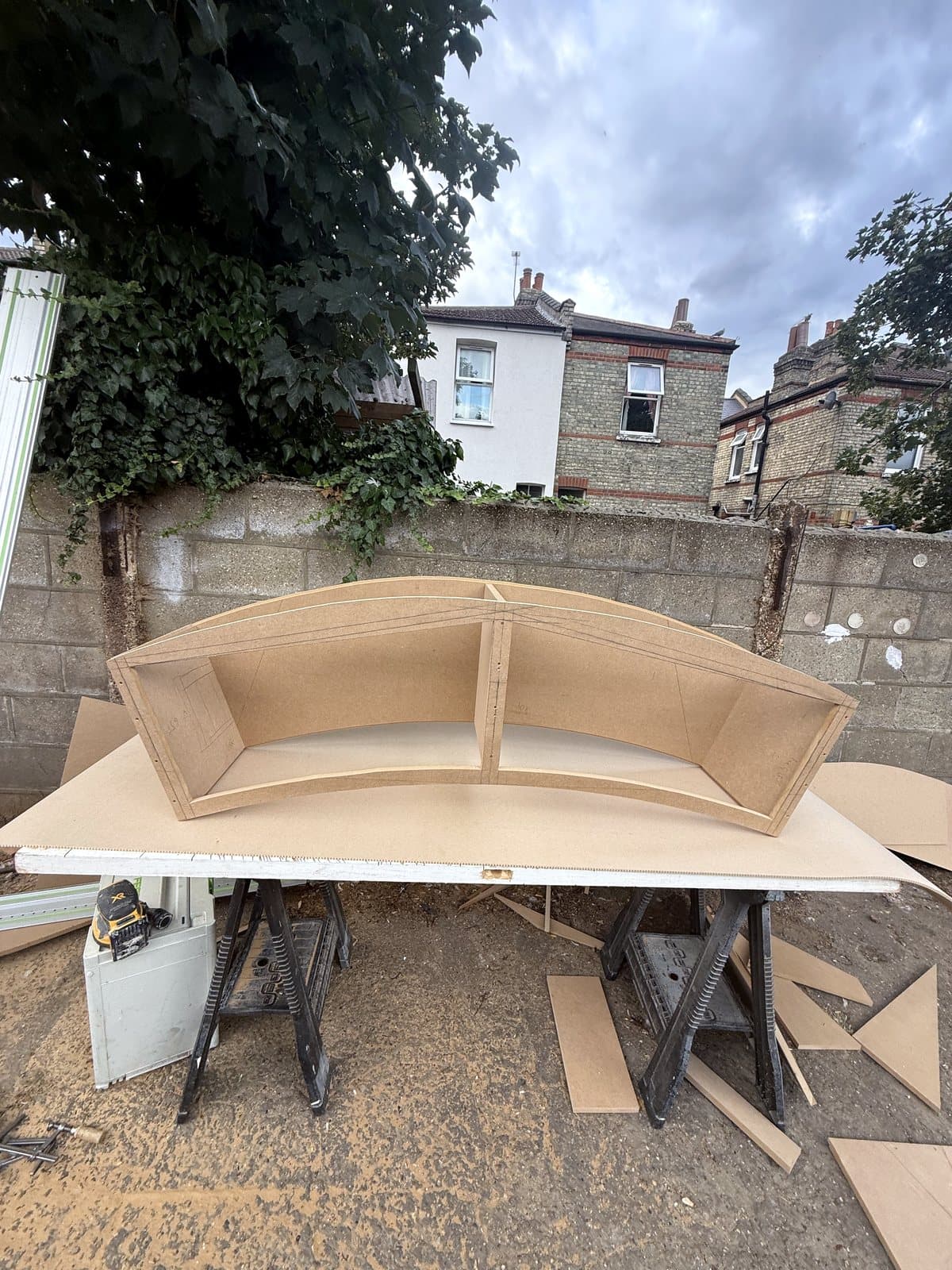

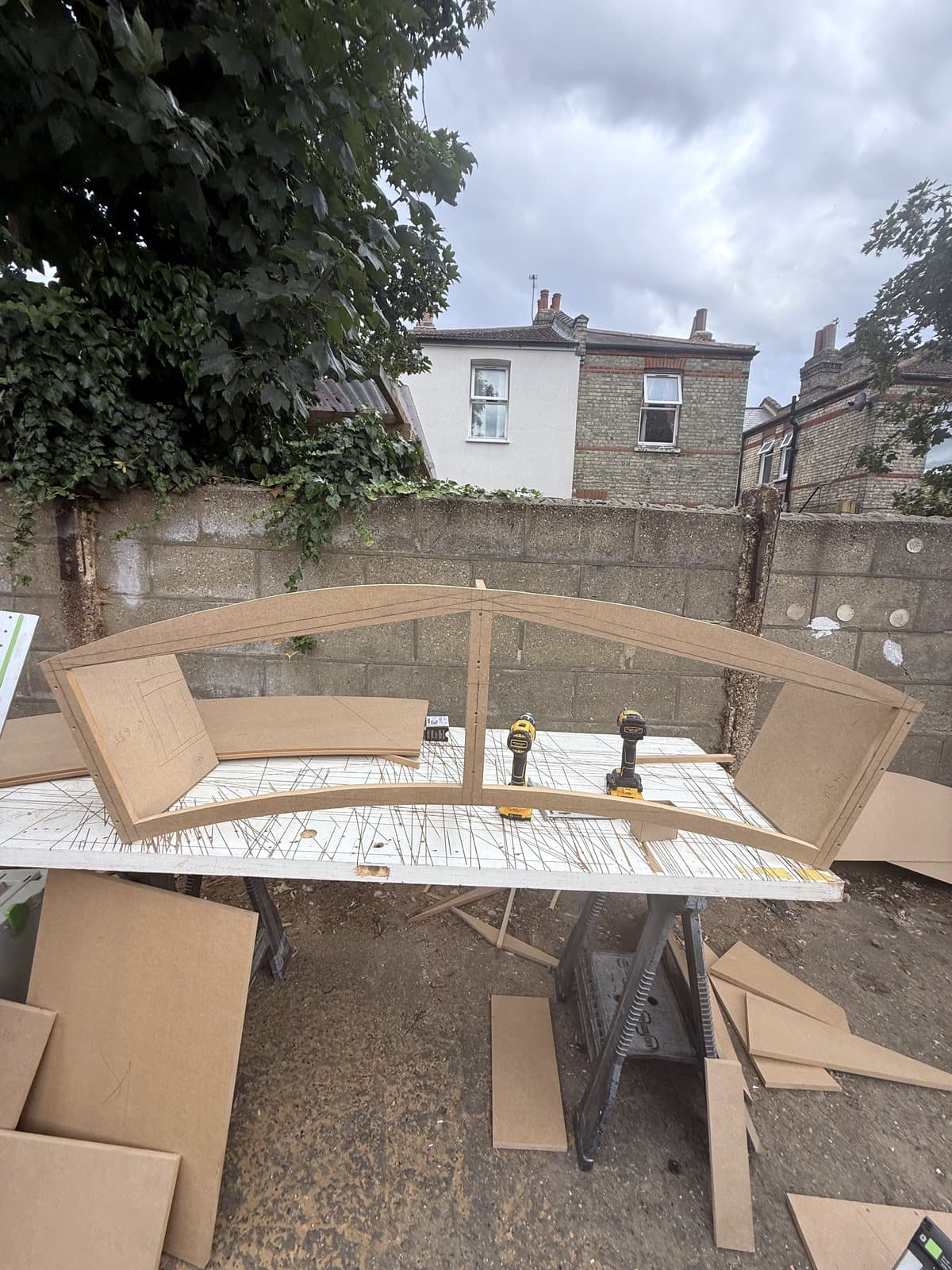

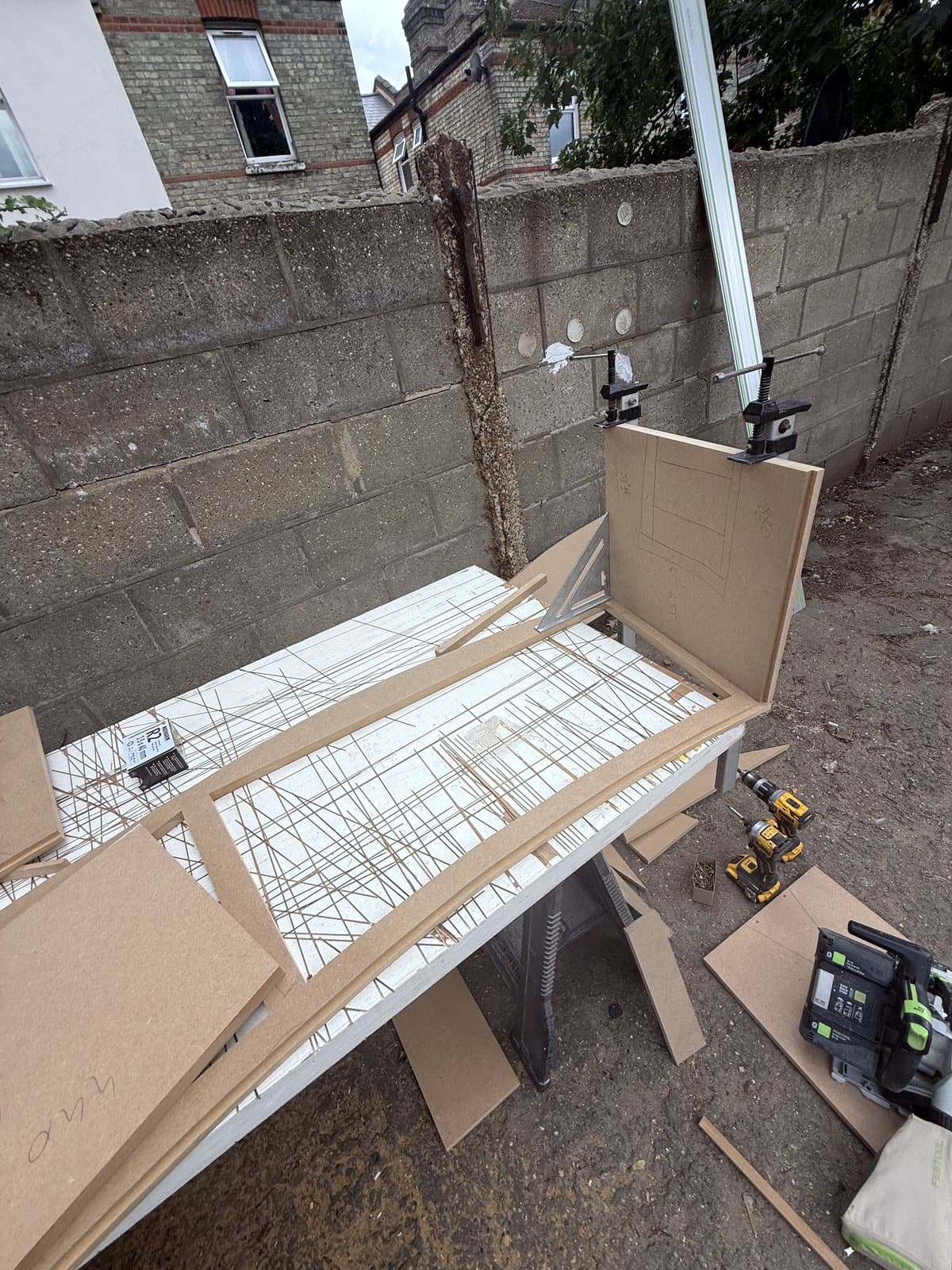

Curved frames
Curved frames cut to match.
04

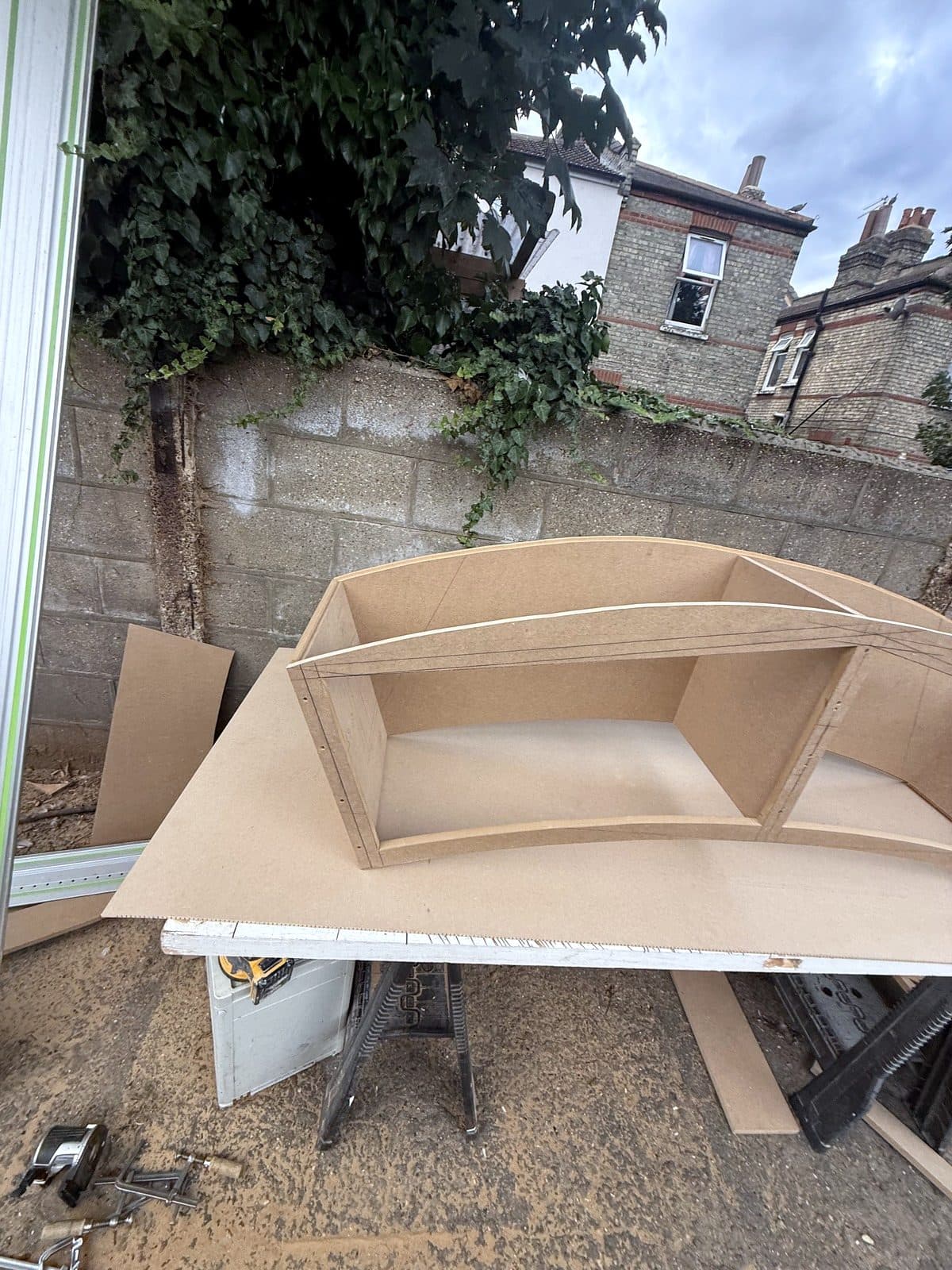

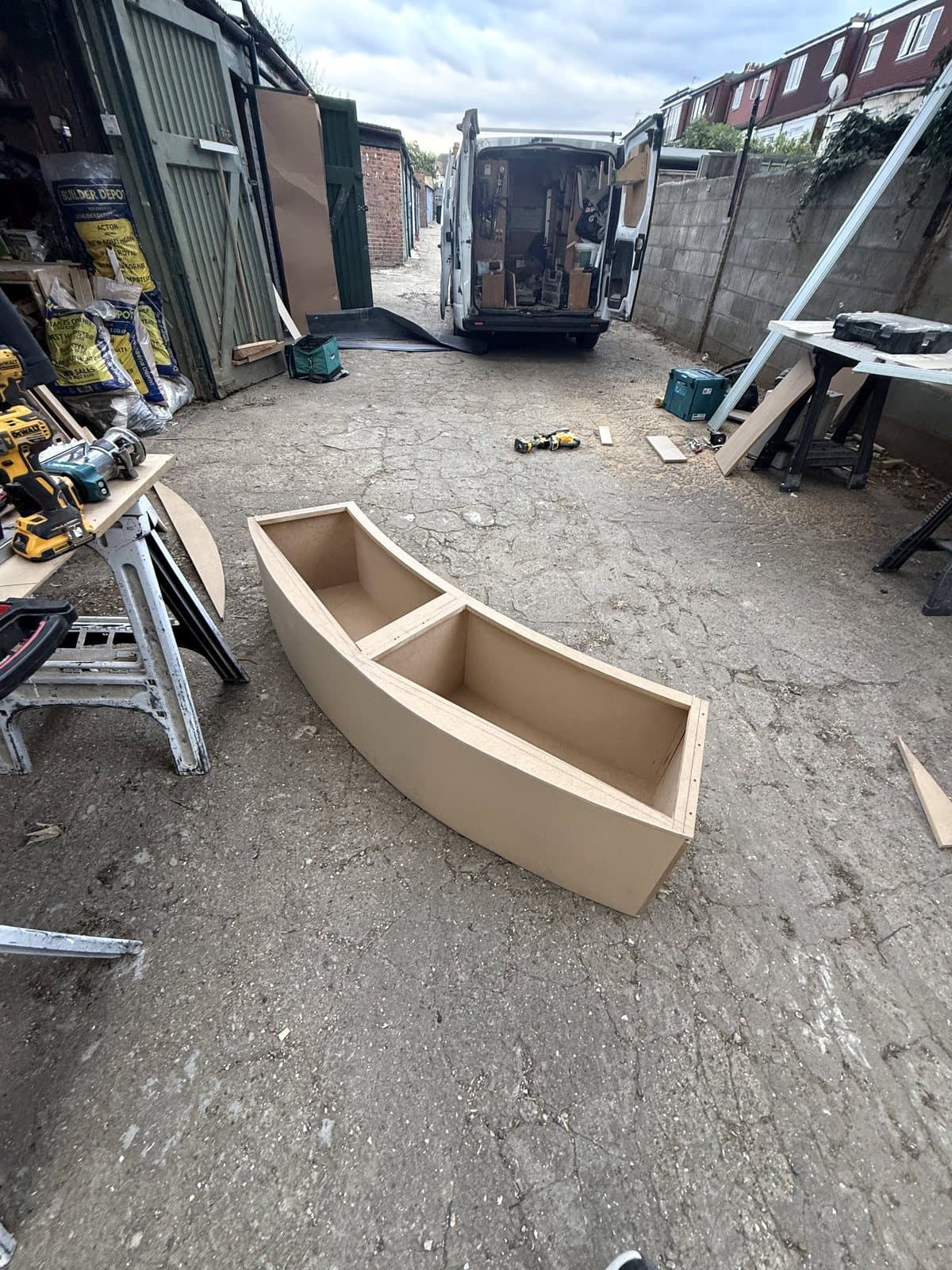

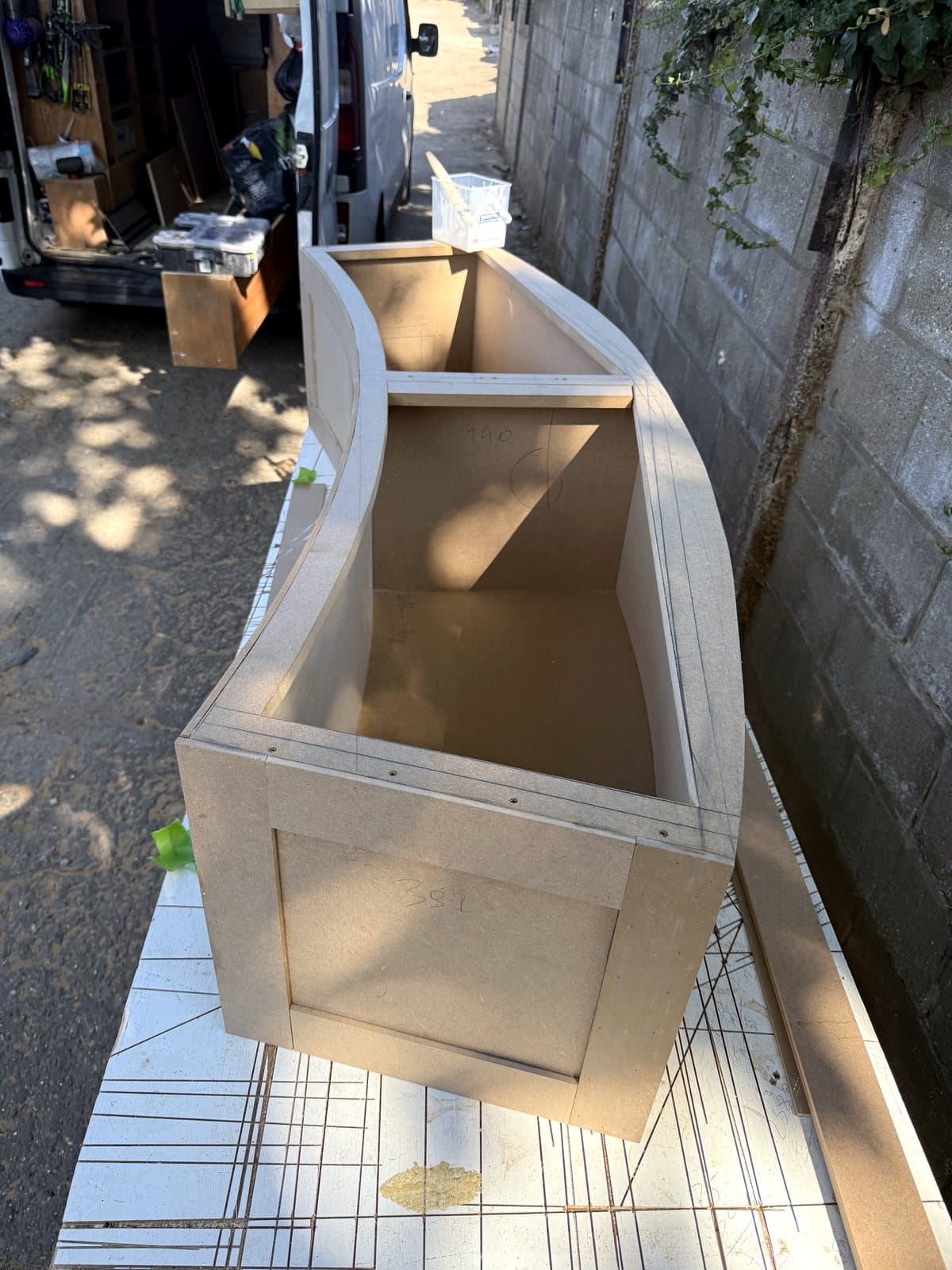

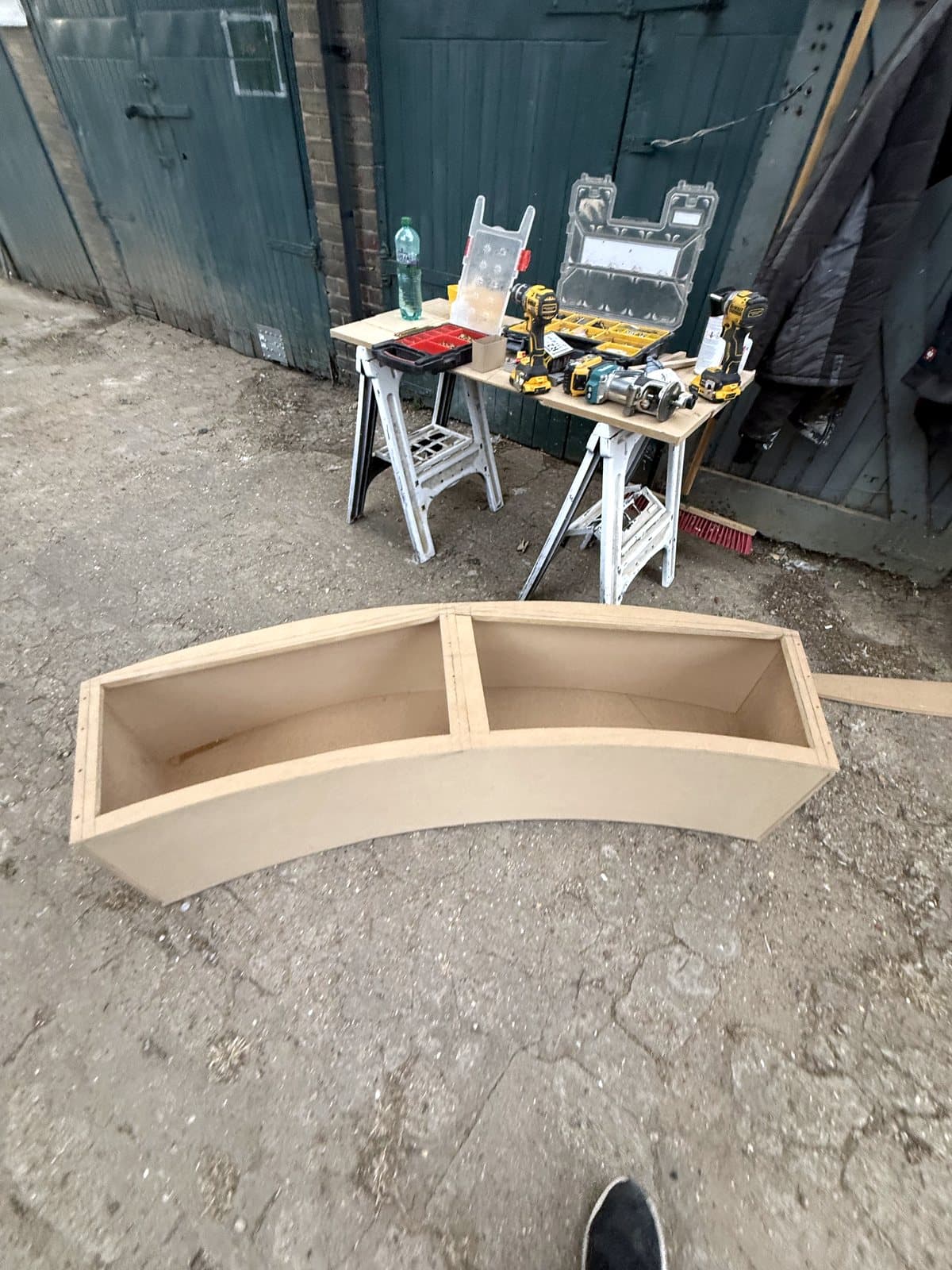

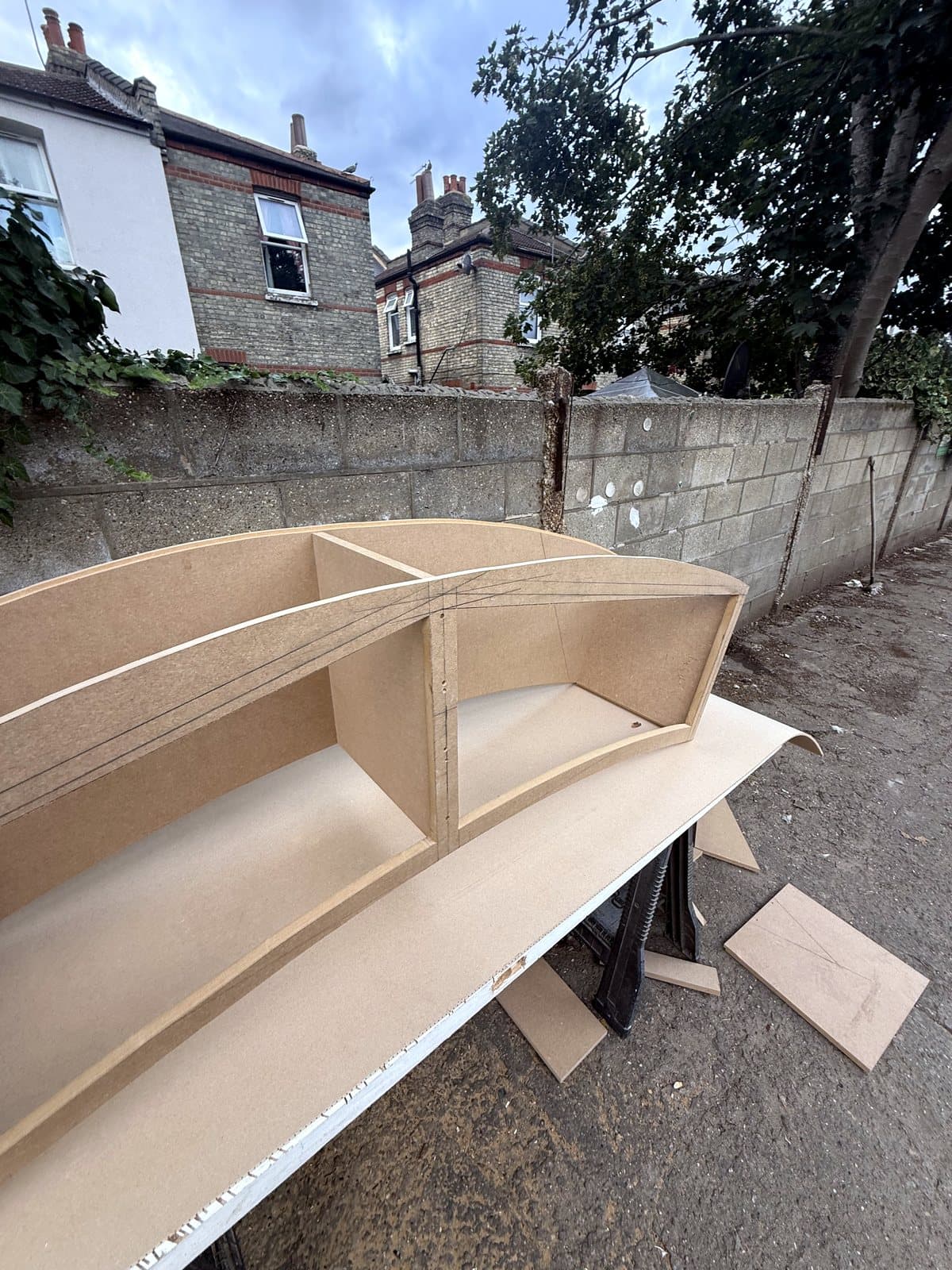

Boxes built
The storage boxes built between the frames.
05

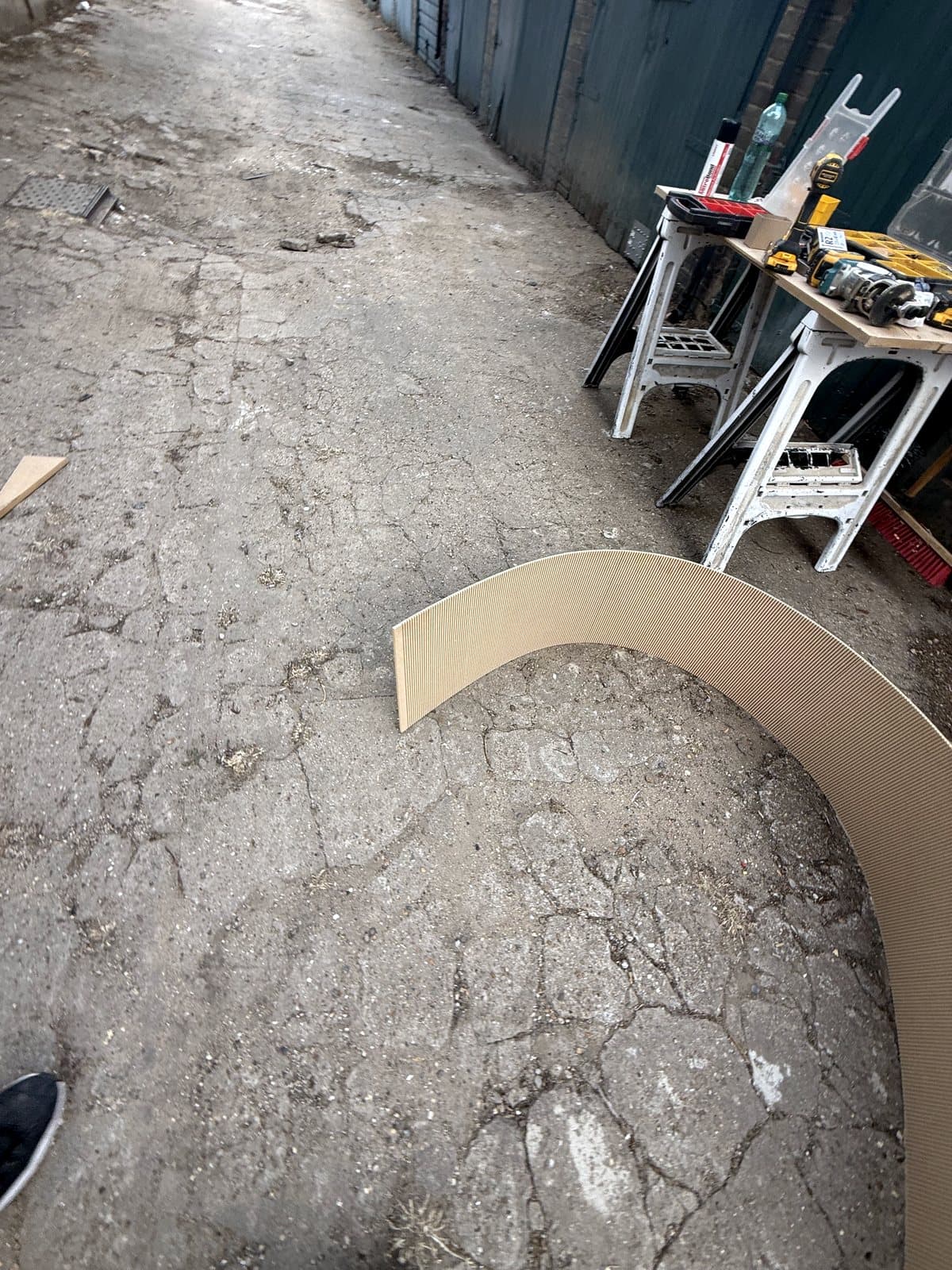

Bent to the curve
A thin sheet bent round to follow the curve of the frames.
06

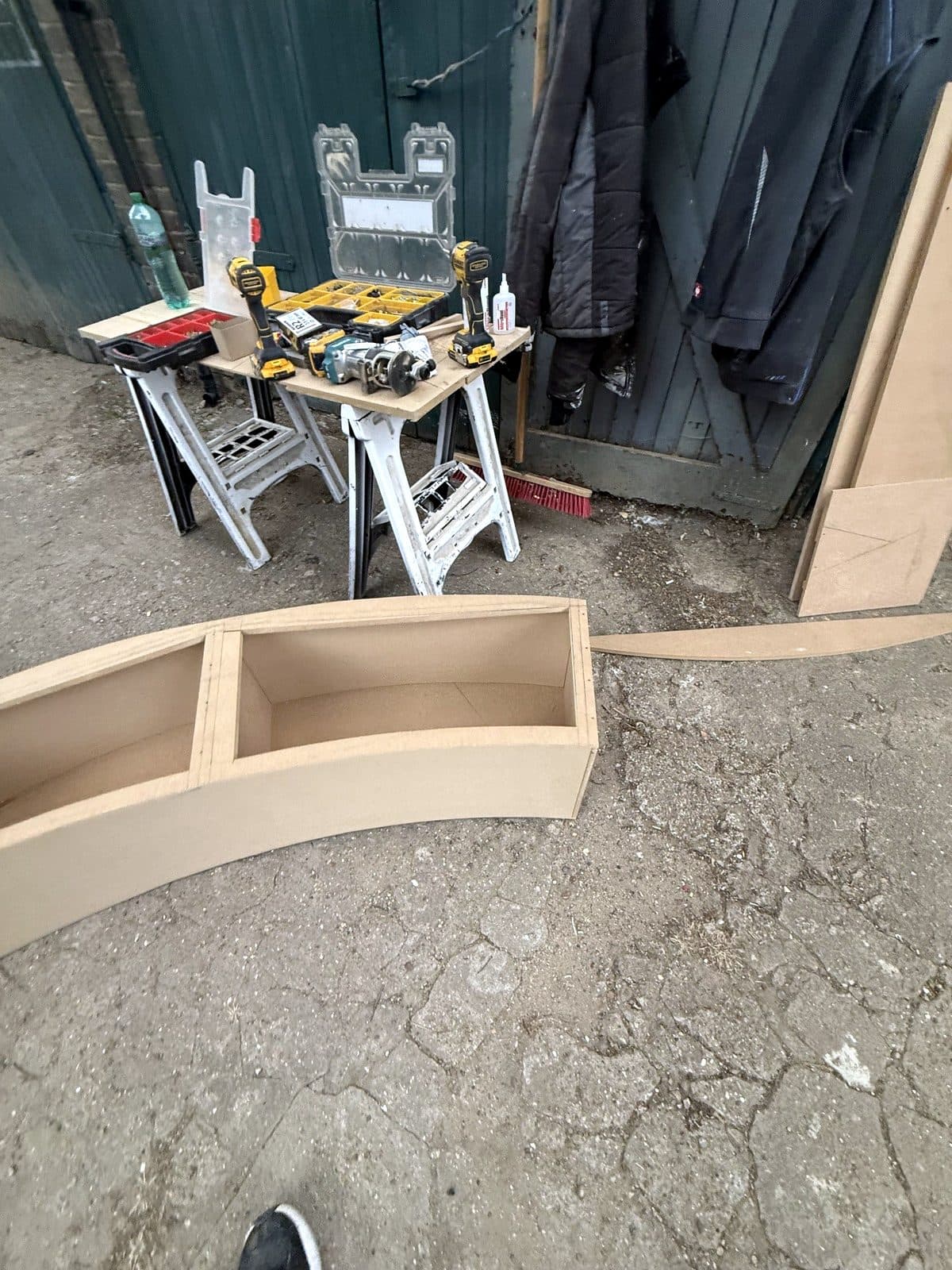

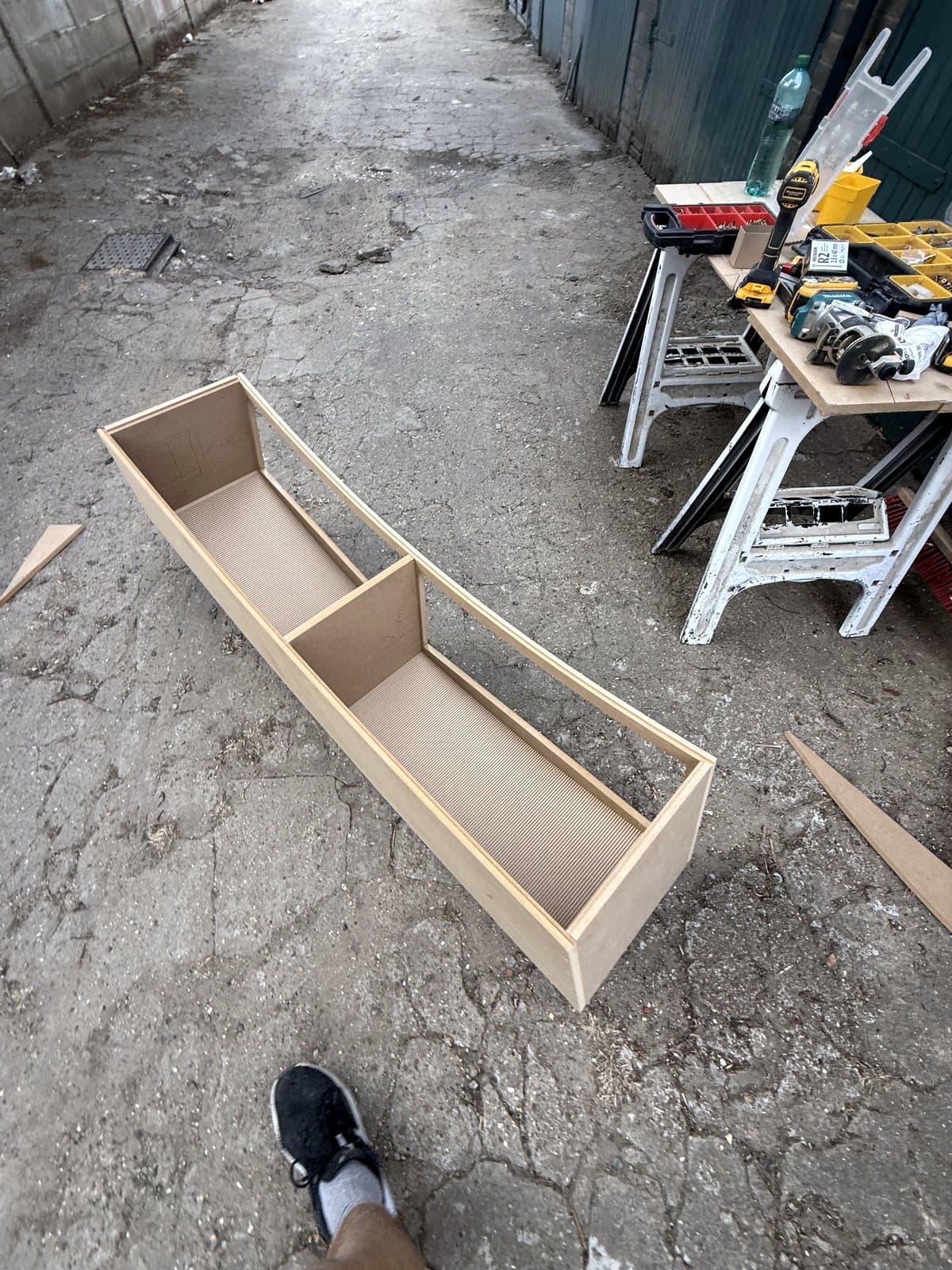

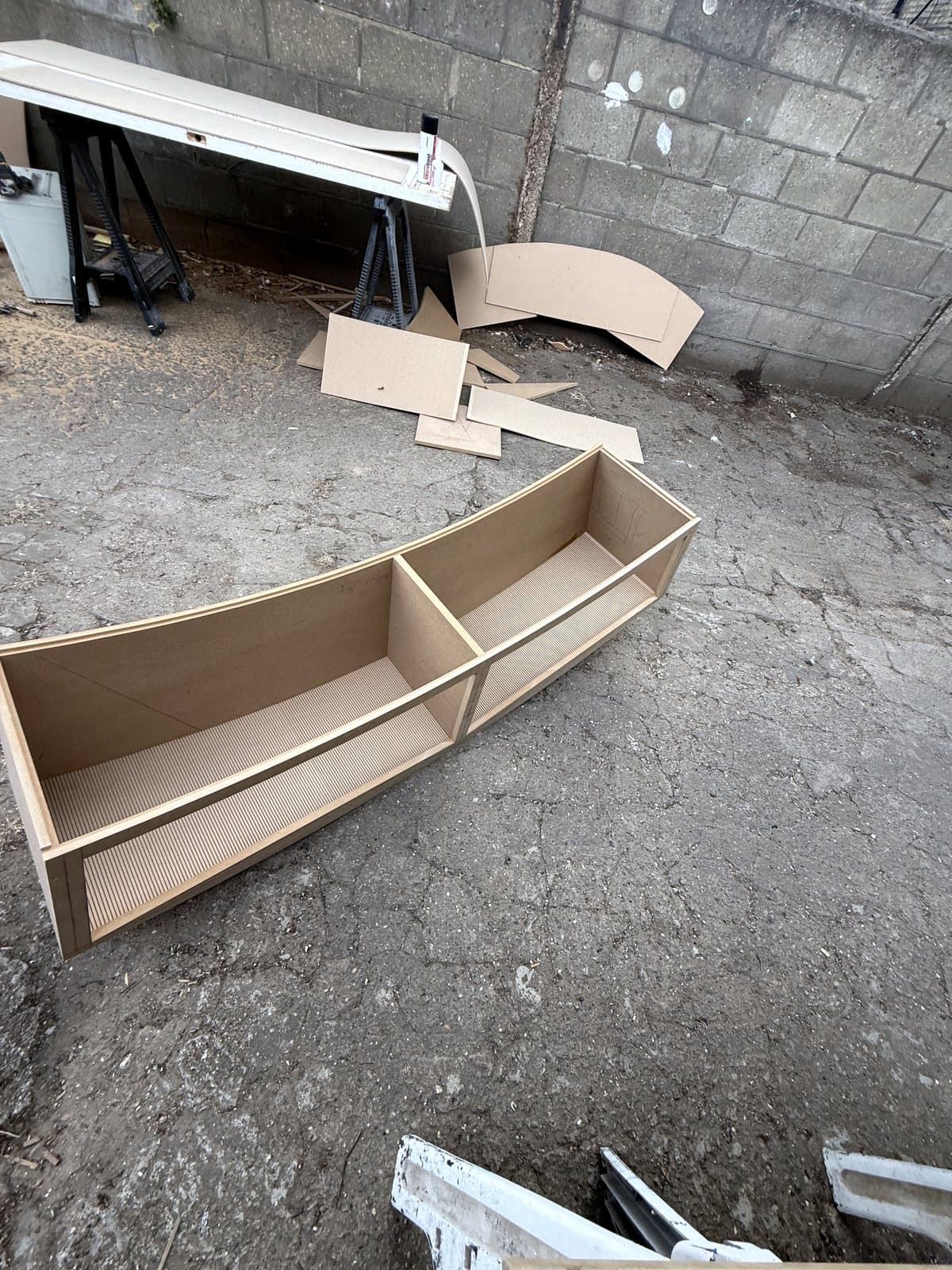

Shape checked

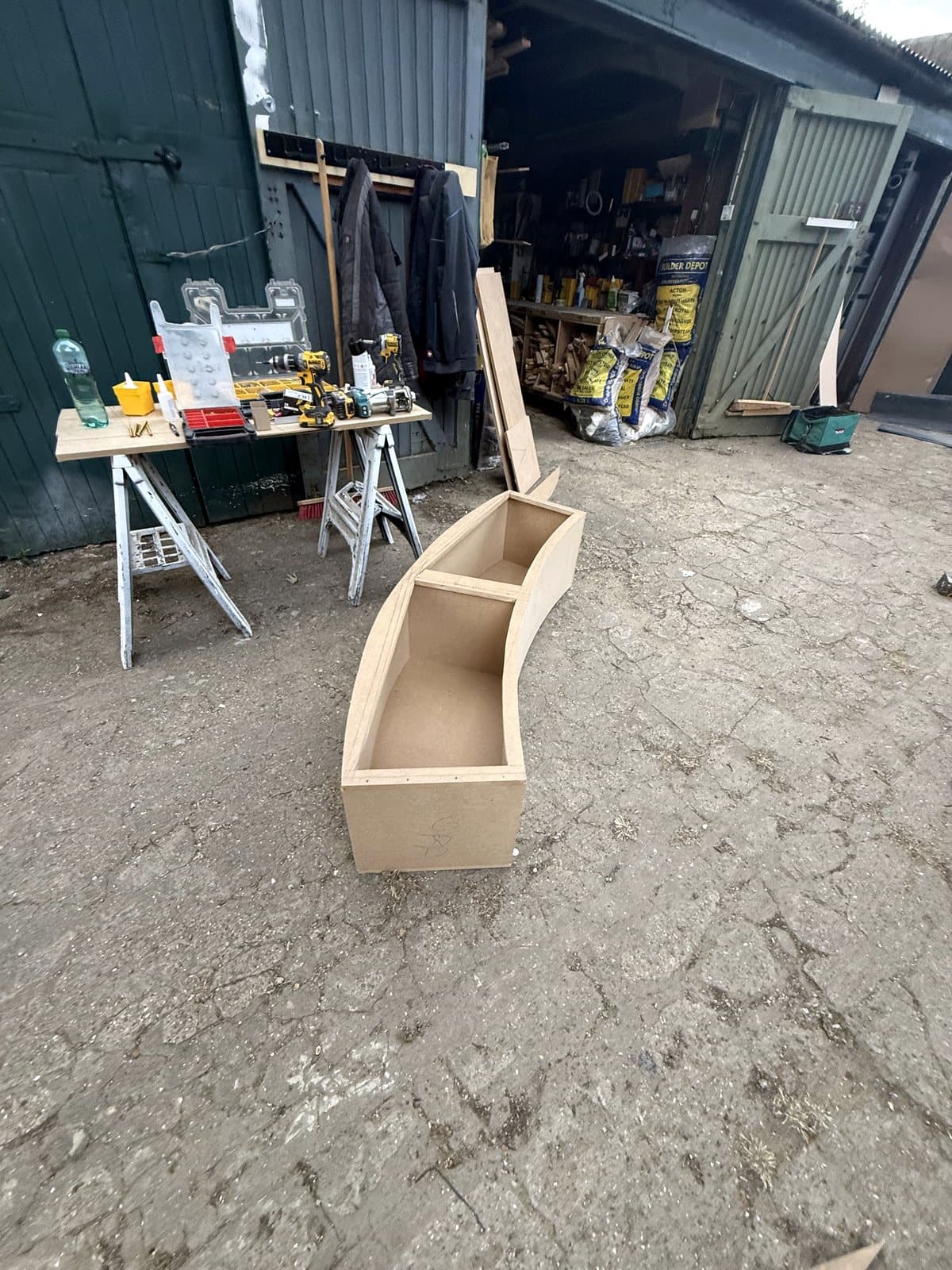

The whole curve checked on the ground.
07

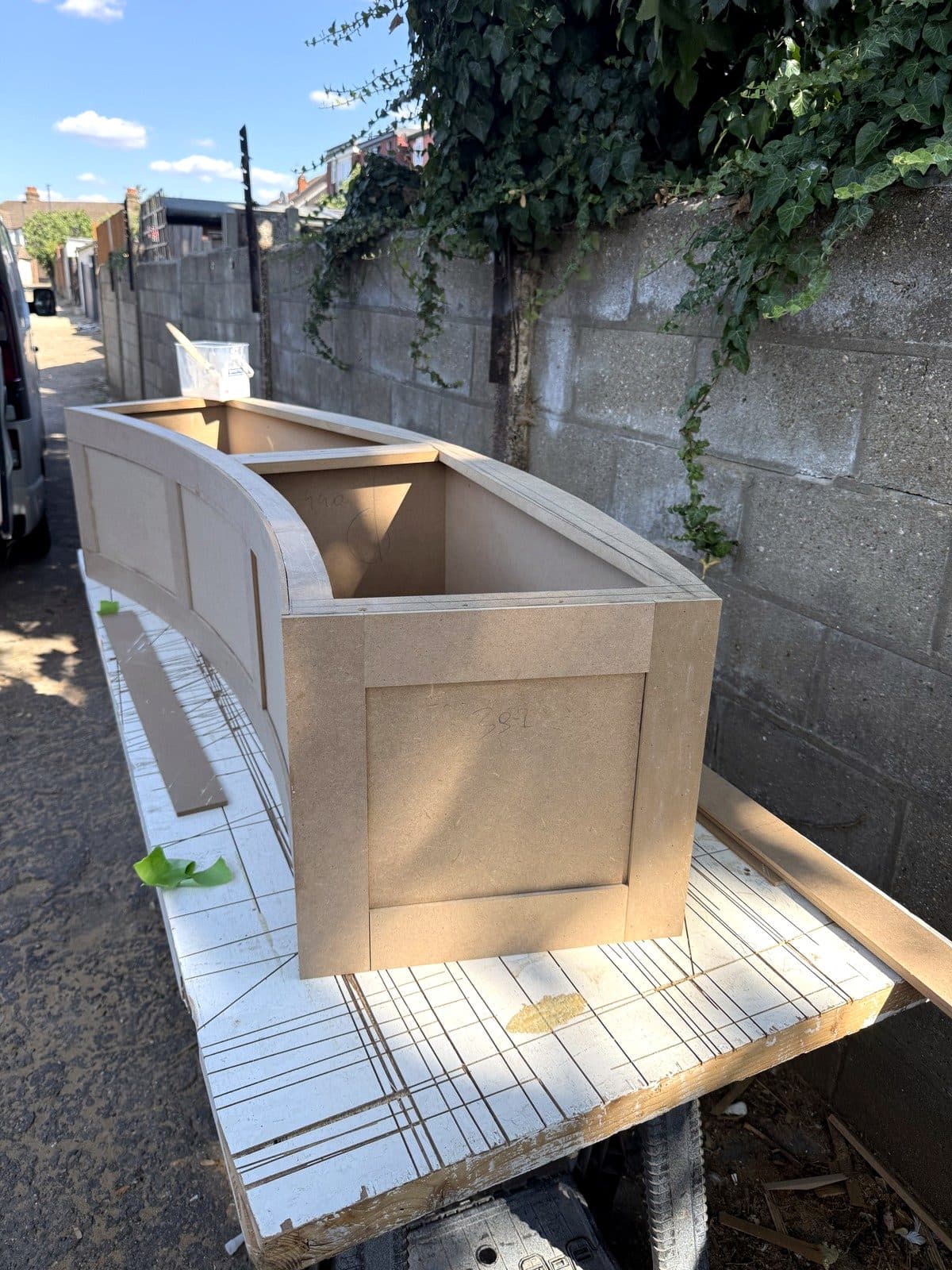

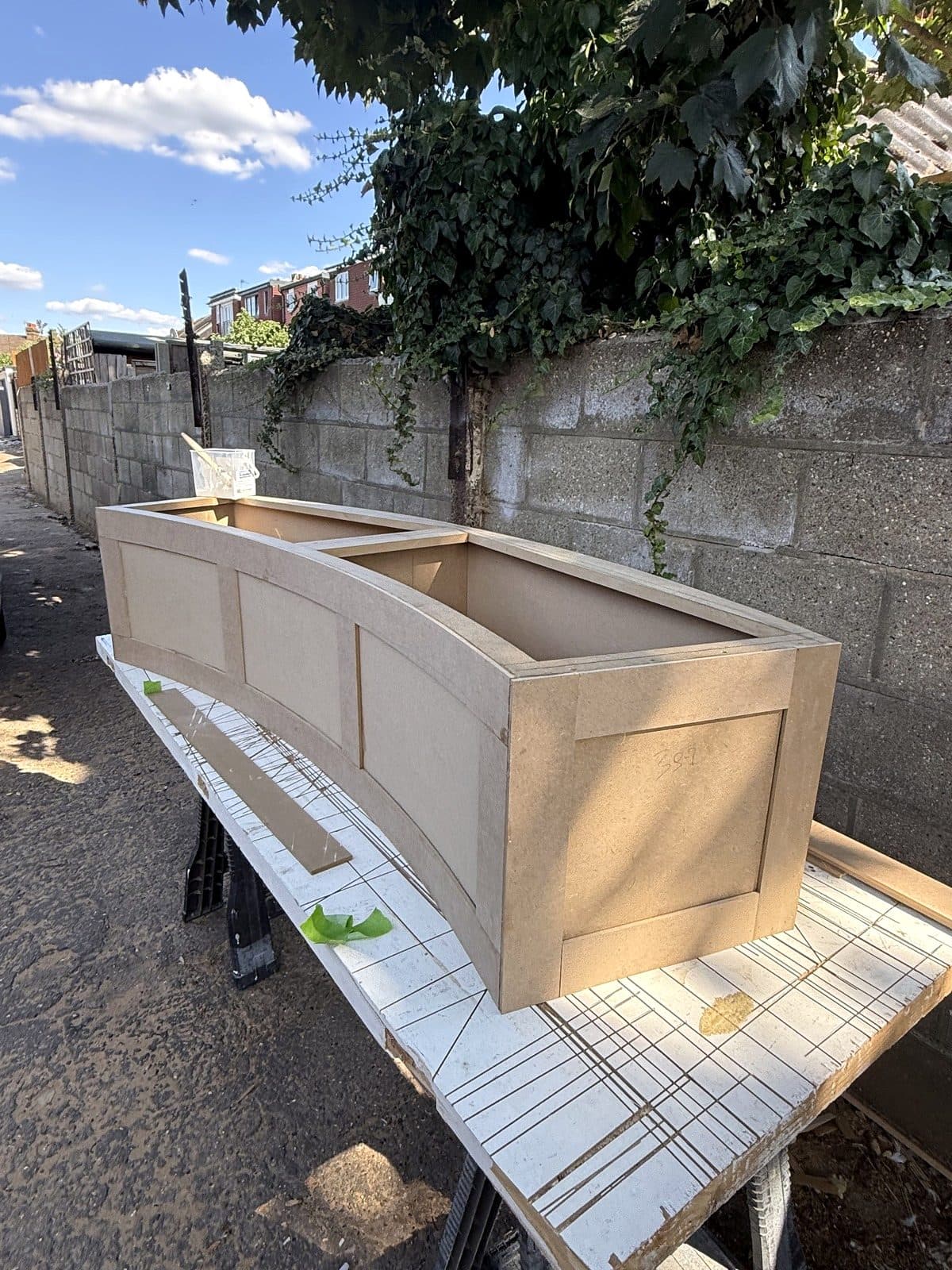

Panelled fronts
Panelled fronts fitted round the curve.
More on video

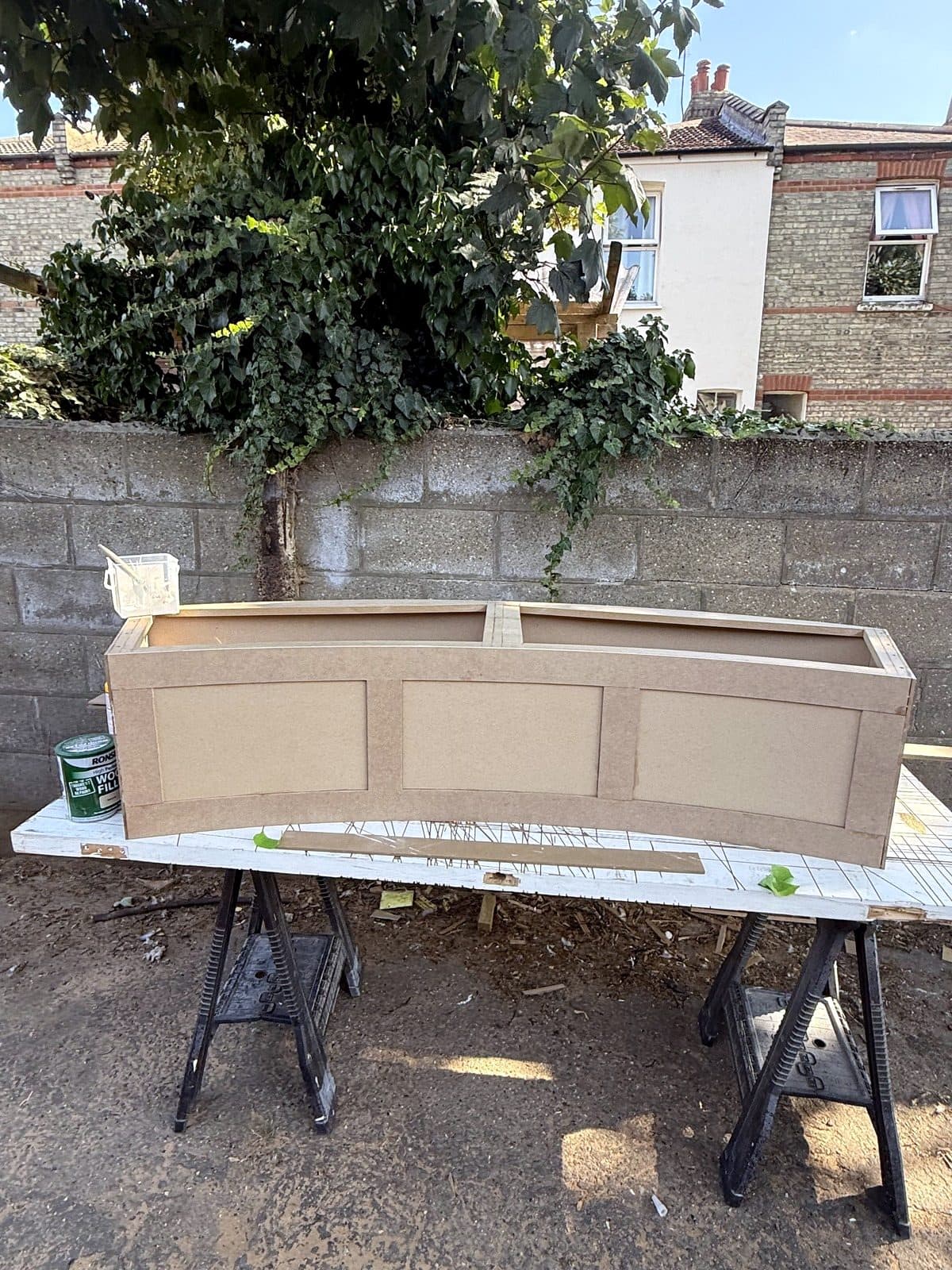

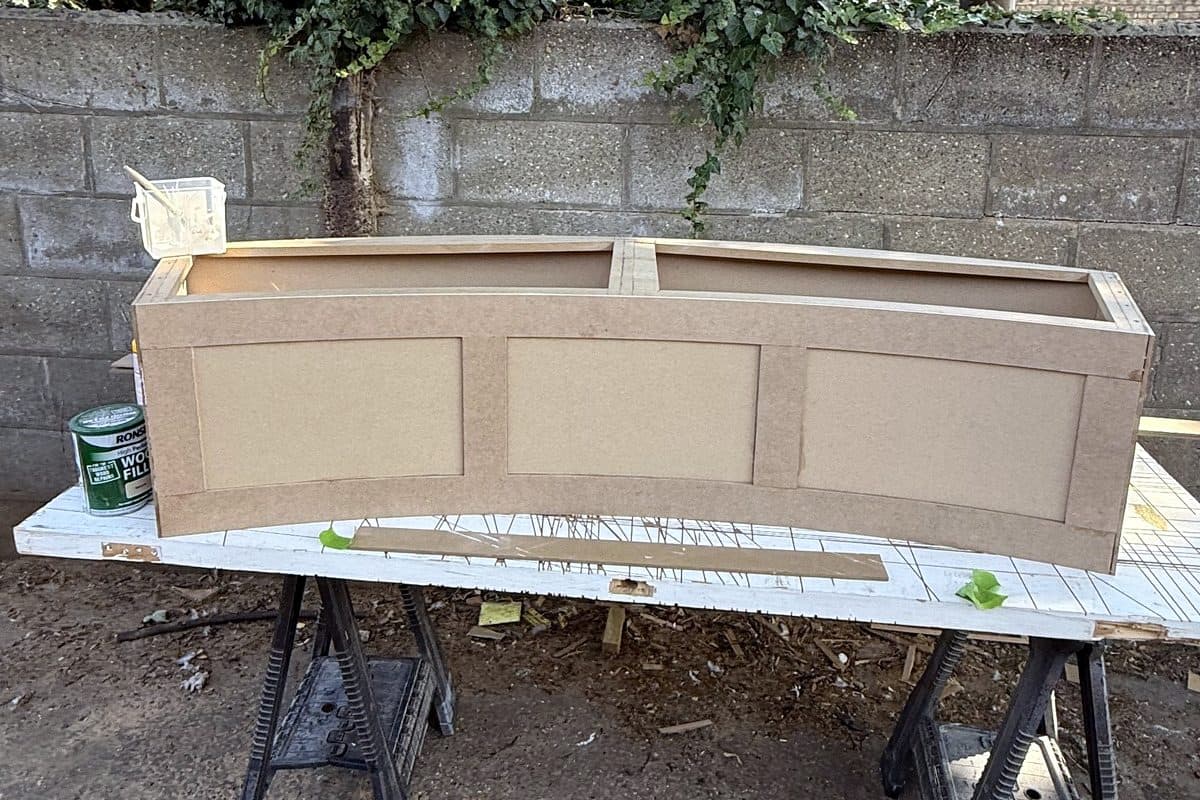

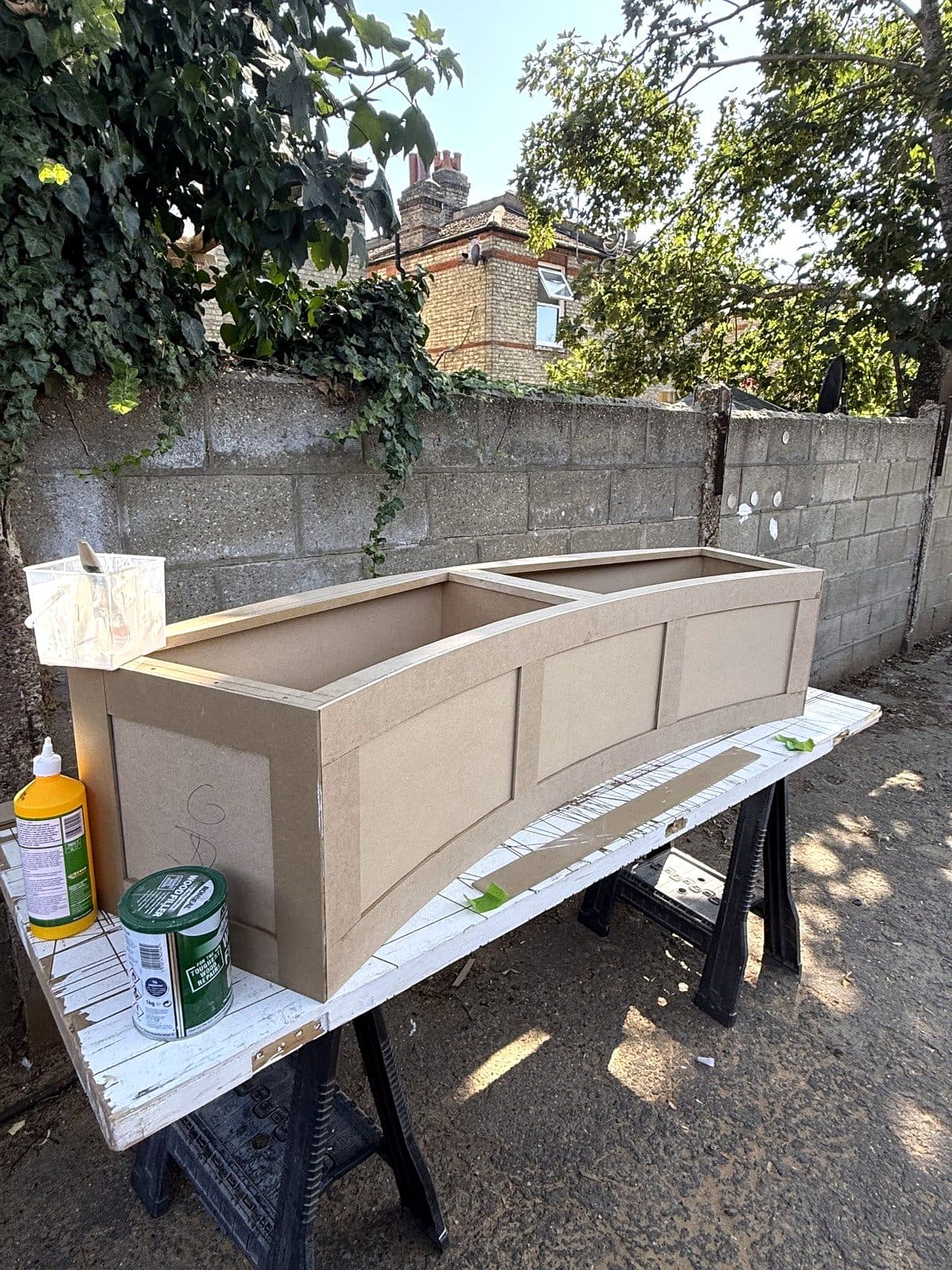

The seat on the trestles before it went in: panelled front and lids up.

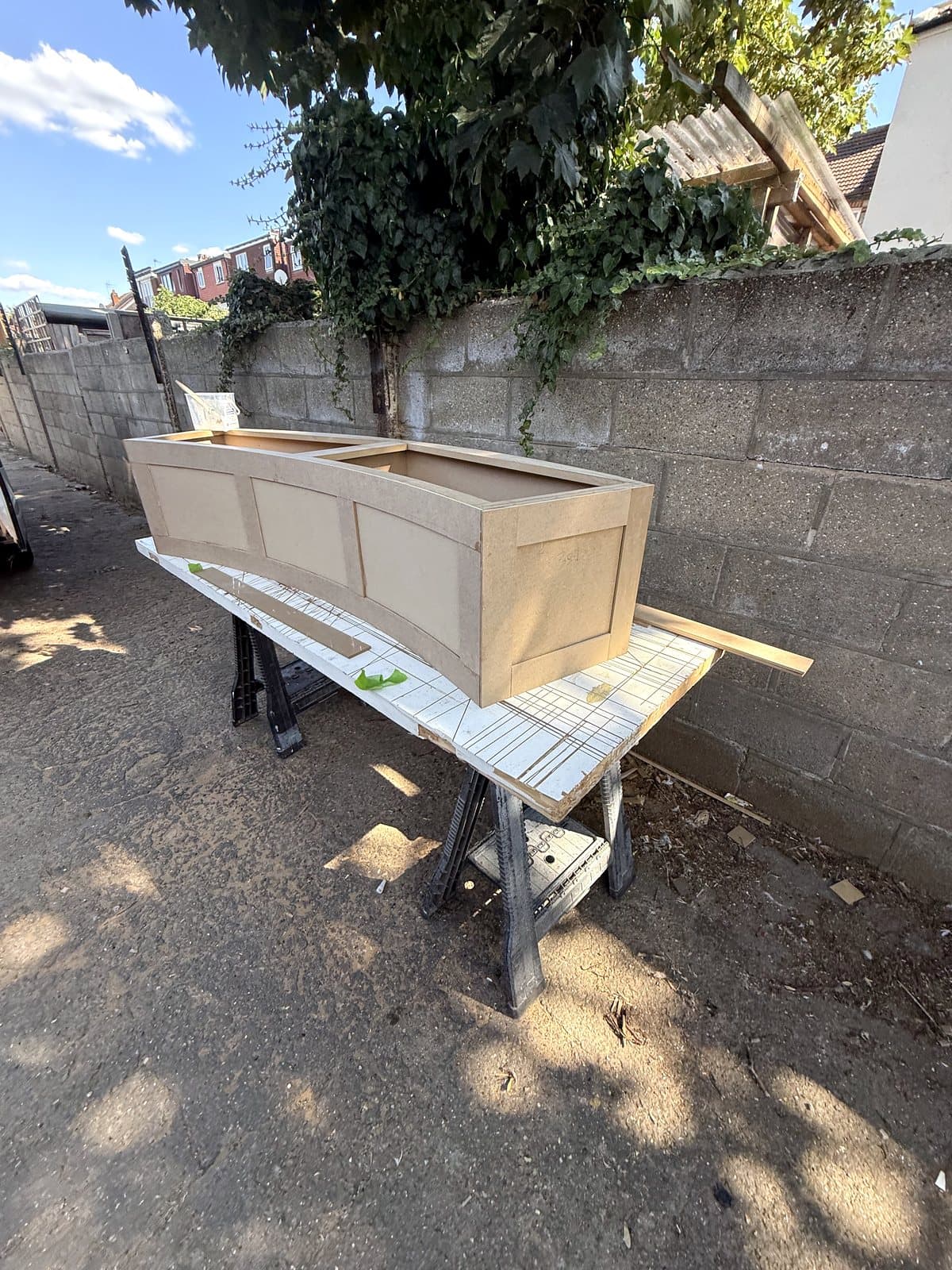

Panelled fronts going on round the curve.
Photos
Tap a photo to see it full size
More from the build
14 photos from the job
